Description

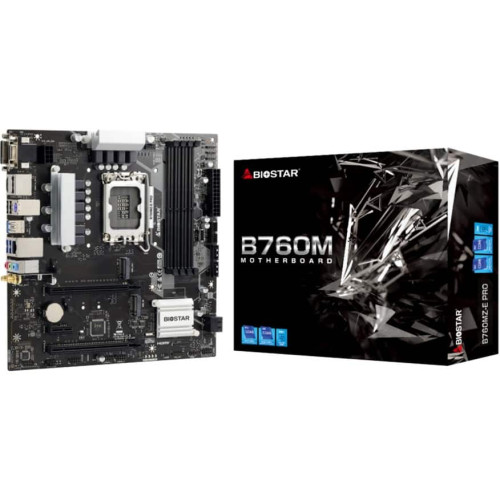

The Biostar MAG B760MZ-E PRO motherboard is based on the Intel B760 chipset and supports Intel®® processors for the 1700th and 13th generation socket 12. It has four DDR5 DIMM slots in dual-channel operation for up to 128 GB of memory. Other features of the Biostar B760MZ-E PRO include a PCIe 4.0 x16 slot, a PCIe 4.0 x4 slot and a PCIe 3.0 x1 slot. In addition, the B760MZ-E PRO has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports, and a number of USB interfaces.
Waranty : Comes with manufactures warranty of 2 years!
TERMS OF SALE
Type | Motherboard | ||
EAN | 4712960686830 | ||
Manufacturer No. | B760MZ-E PRO | ||
Plinth | 1700 | ||
Maximum CPUs Supported | 1 | ||
Operating system | Support | Windows 10 ready, Windows 11 ready | |
Processor | Supported Models | Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) | |
Chipset | Intel® B760 | ||
Slots | PCIe x16 | 2x (of which: 16x PCIe x16, 1x PCIe x4) | |
PCIe x1 | 1 | ||
Form factor | μATX | ||
Use | PC | ||
Power supply | ATX12V (24-pin + 8-pin) | ||
Memory | maximum | 128 GB | |
Number of sockets | 4x DDR5 | ||
Supported standards | DDR5 - 6000+(OC) / 6000(OC) / 5800(OC) / 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 | ||
Channels | 2 | ||
Maximum Memory Ranks | 8 | ||
Memory controller in CPU | Yes | ||
Connections (external) | Mouse/Keyboard Combo (PS/2) | 1 | |
USB-A 3.2 Gen 1 (5 Gbps) | 3 | ||
Hint: | The USB 3.2 Gen 1 designation corresponds to the former USB 3.1 Gen 1 and USB 3.0 designations, respectively. | ||
VGA | 1 | ||
DVI-D | 1 | ||
HDMI | 1 | ||
DisplayPort-Out | 1 | ||
Line | 1 | ||
Line-Out | 2 | ||
RJ-45 | 1 | ||
Connections (internal) | SATA | 4 | |
M.2 | 2 | ||
M.2 Module Key | M | ||
M.2 Wi-Fi | 1 | ||
M.2 Length | 42 - 80 mm | ||
4-pole PWM fan | 3 | ||
Connections (optional) | USB 3.2 Gen 1 (5 Gbps) | 2 | |
USB 3.2 Gen 2 (10 Gbps) | 1 | ||
USB 2.0 | 4 | ||
WIRELESS | Yes | ||
TPM | Yes | ||
SATA Controller | Intel® B760 | ||
USB Controller | Intel® B760 | ||
Onboard Graphics | The graphics connectors of the motherboard can only be used when using a CPU with an integrated graphics chip. | ||
Sound | Realtek ALC897 | ||
LAN | Realtek RTL8125B 2.5 Gbps | ||
Additional Information | In order to support the latest processor cores, a BIOS update may be required. Wi-Fi 6E and Bluetooth 5.2 are supported starting with Windows 10 version 21H1. | ||
Accessories | available | 2x SATA cable, I/O shield, driver DVD, quick start guide | |
Dimensions | Width: 240 mm x Depth/Length: 240 mm |
