General
Brand EVGA

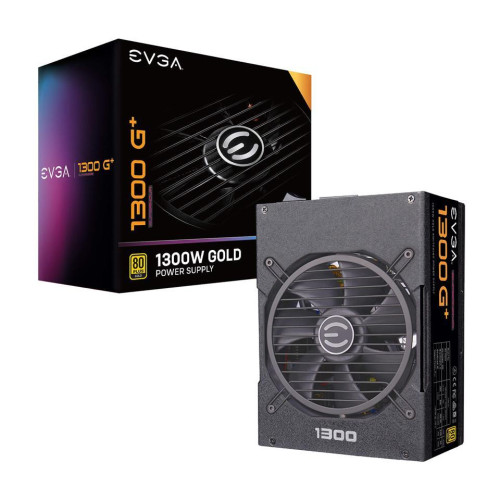

Series SuperNOVA 1300 G+
Model 220-GP-1300-X1
Details
Type ATX12V / EPS12V
Maximum Power 1300 W
Fans 1 x 135mm Fluid Dynamic Bearing Fan
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 8 x 6+2-Pin
SATA Power Connector 12
Haswell Support Yes
Modular Full Modular
Efficiency 90% or higher (under typical load)
Energy-Efficient 80 PLUS GOLD Certified
Protection Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Input Voltage 100 – 240 V
Input Frequency Range 50/60 Hz
Input Current 15 – 8 A
Output +3.3V@24A, +5V@24A, [email protected], [email protected], +5Vsb@3A
MTBF >100,000 Hours
Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement
Max PSU Length 200 mm
Connectors 1 x 24 Pin ATX (20+4)
2 x 8 Pin EPS (4+4)
8 x 8 Pin PCIe (6+2)
12 x SATA
6 x Four-Pin Peripheral
1 x Floppy
Features
Features The SuperNOVA G+ is the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 G2 and 1300 G2 power supplies left off and continue the tradition of EVGA quality and performance. Additionally, the SuperNOVA G+ power supplies feature a cleaner internal layout, a Variable Resistor module, two DC to DC modules for more efficient power switching, EVGA ECO Mode, a full suite of power supply protections, and EVGA’s World-Leading Global 10-Year Warranty on all G+ power supplies.

EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

80 PLUS Gold certified, with 90% efficiency or higher under typical loads.

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
