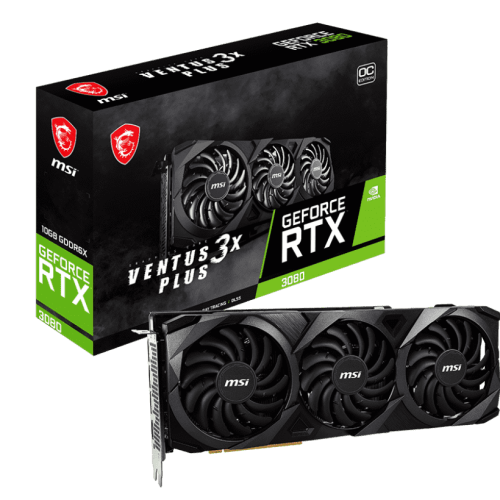

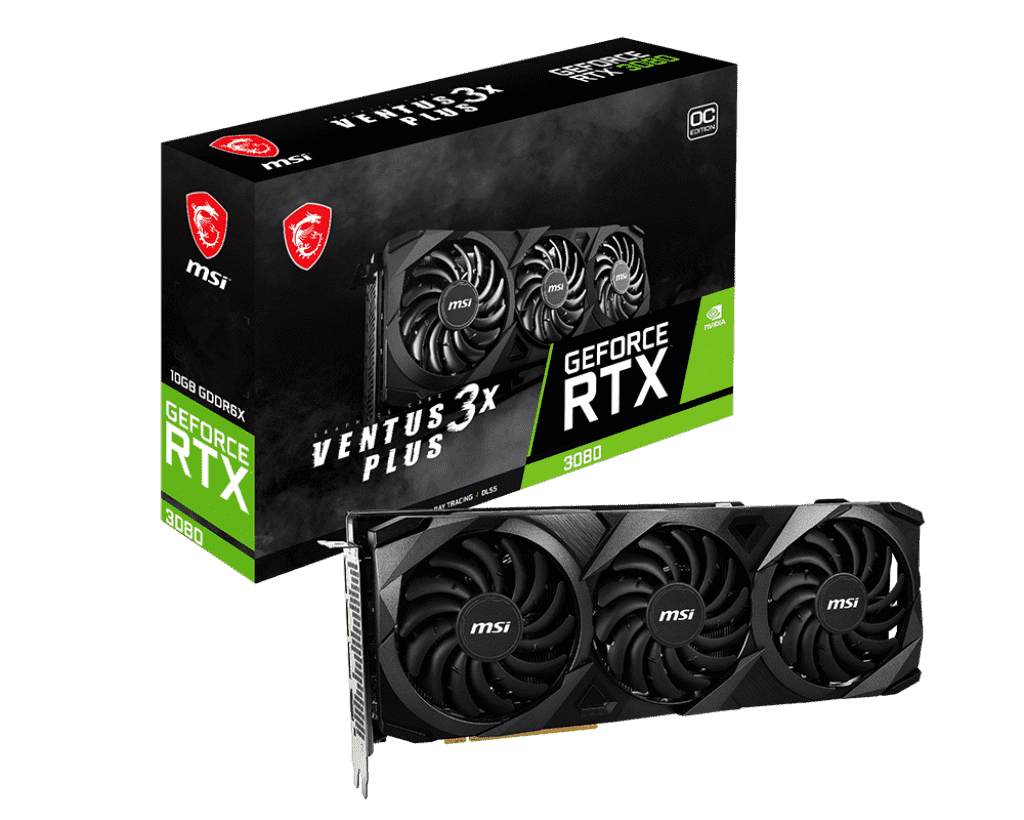

Model Name GeForce RTX™ 3080 VENTUS 3X PLUS 10G
Graphics Processing Unit NVIDIA®
GeForce RTX™ 3080
Interface PCI Express®
Cores 8704 Units
Core Clocks Boost: 1740 MHz
Memory Speed 19 Gbps
Memory 10GB GDDR6X
Memory Bus 320-bIt
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified
in HDMI 2.1)
HDCP Support Y
Power consumption 320W
Power connectors 8-pin x 2
Recommended PSU 750W
Card Dimension (mm) 305 x 120 x 57 mm
Weight (Card / Package) 1370g / 1986g
DirectX Version Support 12 API
OpenGL Version Support 4.6
Maximum Displays 4
VR Ready Y
Adaptive Vertical Sync Y
Digital Maximum Resolution 7680×4320

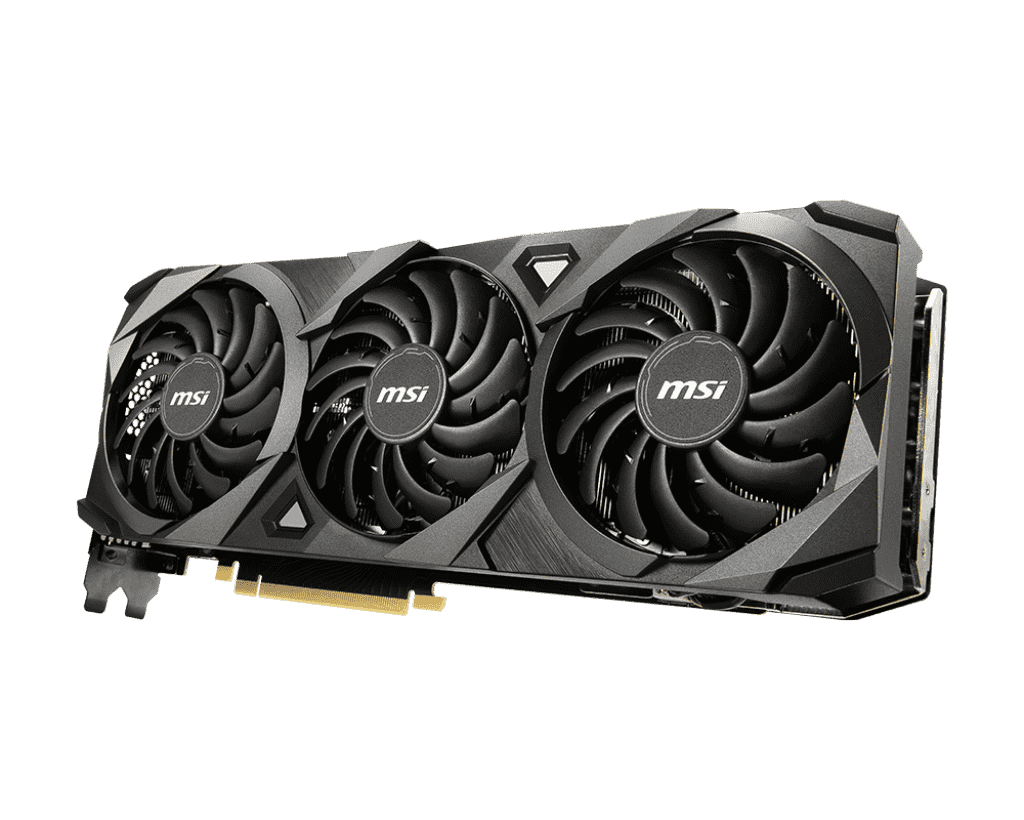

TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design creates high static
pressure and pushes the limits of thermal performance.
Three fans and a huge heatsink ensure a cool and quiet
experience for you.
Precision-machined heat pipes ensure max contact and spread
heat along the full length of the heatsink.
The custom PCB has been engineered with hardened circuits and
optimized trace routing for performance and reliability.

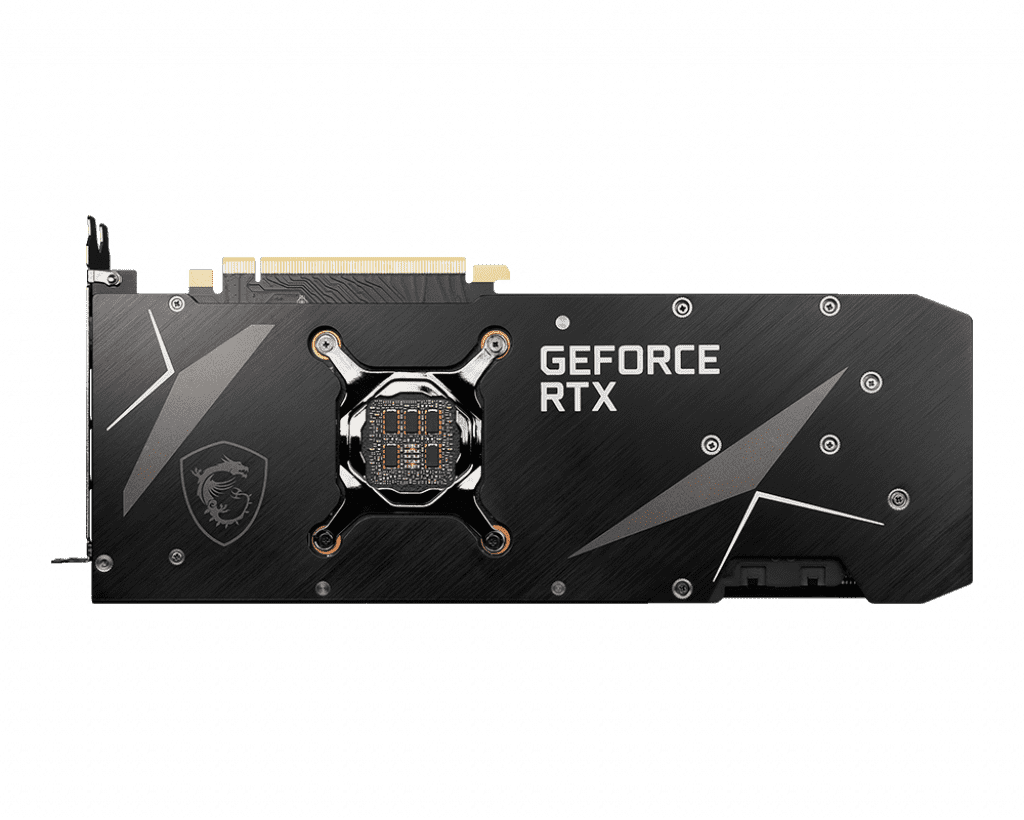

Thermal pads beneath the sturdy metal backplate provide
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
