Description
GPU

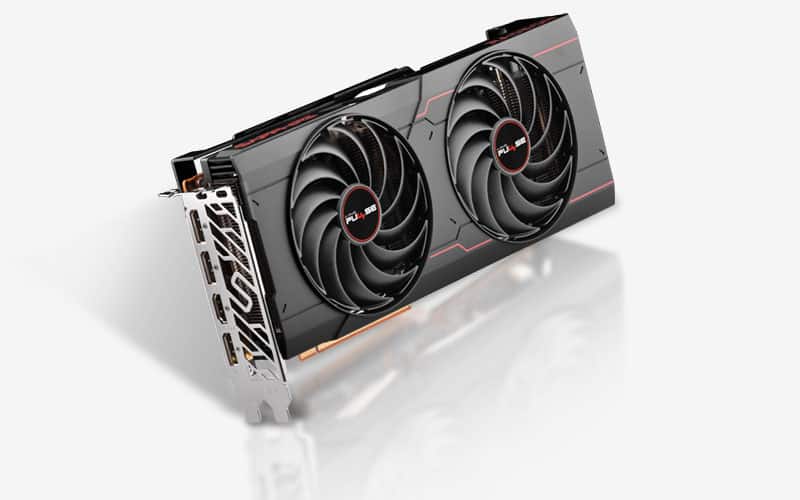

AMD Radeon™ RX 6700 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
- Boost Clock: Up to 2581 MHz
- Game Clock: Up to 2424 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
2560
Infinity Cache
96MB
Ray Accelerators
40
Memory Size/Bus
12GB GDDR6
Memory Clock
16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0
Output
- 1x HDMI
- 3x DisplayPort
BIOS Support
- UEFI
Game Index
4K
Sapphire Features
- Premium Digital Power Design
- Fuse Protection

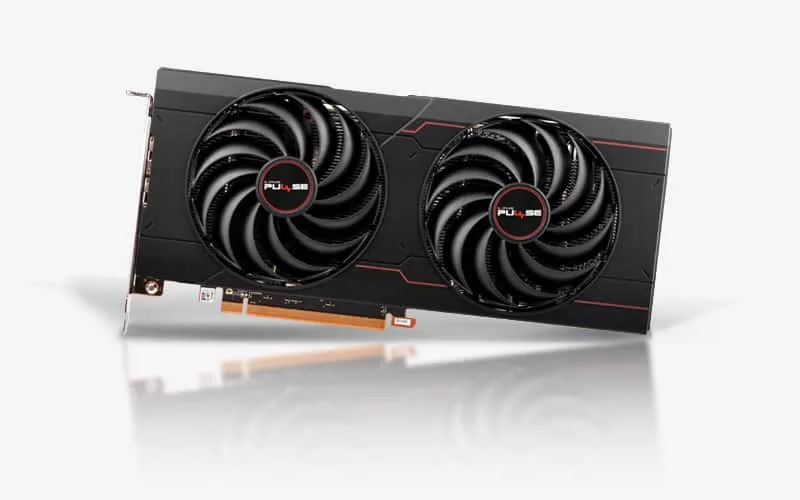

- Dual-X Cooling Technology
- Intelligent Fan Control
- Precision Fan Control

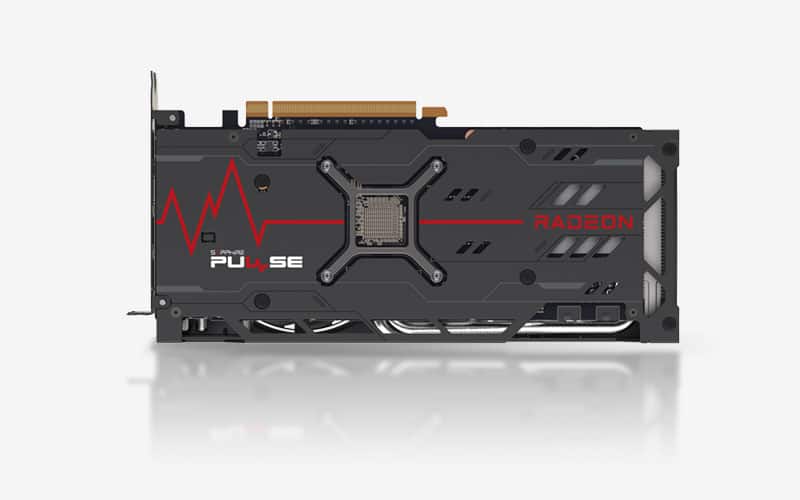

- Metal Backplate
- Two-Ball Bearing Fans
- Integrated Cooling Module
- TriXX Supported
- TriXX Boost
AMD Features
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- Smart Access Memory
- Infinity Cache
- 7nm GPU
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™ 2.1 VRR
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations
Cooling
Dual Fans
Form Factor
2.2 slot, ATX
Dimension: 260(L)X 119.85(W)X 49(H)mm
Dimension: 260(L)X 119.85(W)X 49(H)mm
Power Consumption
- 230W (Board Power)
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 650 Watt Power Supply
- 1 x 8-pin + 1 x 6-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
- Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
- Colors of PCB or other components may differ from those illustrated.
- SAPPHIRE reserves the right to update or revise specifications without prior notice.
- All trademarks and logos are acknowledged as the property of their respective holders.
*The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
