Appearance

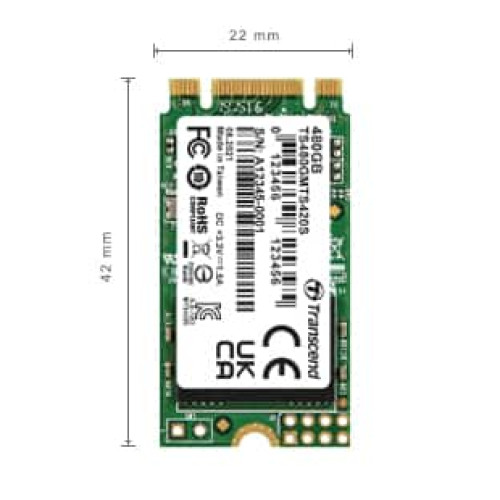

Dimensions 42.0 mm x 22.0 mm x 3.58 mm (1.65″ x 0.87″ x 0.14″)
Weight 5 g (0.18 oz)
Type
M.2 2242
Interface
Bus Interface
SATA III 6Gb/s
Storage
Flash Type
3D NAND flash
Capacity
120 GB/240 GB/480 GB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)
480 GBup to 530/480 MB/s 240 GBup to 500/430 MB/s 120 GBup to 500/350 MB/s
4K Random Read/Write (IOmeter)
480 GBup to 50,000/75,000 IOPS 240 GBup to 40,000/75,000 IOPS 120 GBup to 28,000/75,000 IOPS
Terabytes Written (TBW)
480 GB160 TBW 240 GB80 TBW 120 GB40 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.3 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate
CE/FCC/BSMI/KC/RCM
Warranty
Three-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when SSD Scope’s lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Linux Kernel 2.6.31 or later
Note
Please make sure that your computer has a M.2 slot.
Technology
TRIM & NCQ Command

S.M.A.R.T.

DDR3 DRAM Cache
–
Advanced Garbage Collection

DevSleep Mode
–
RAID Engine

LDPC Coding
