Description

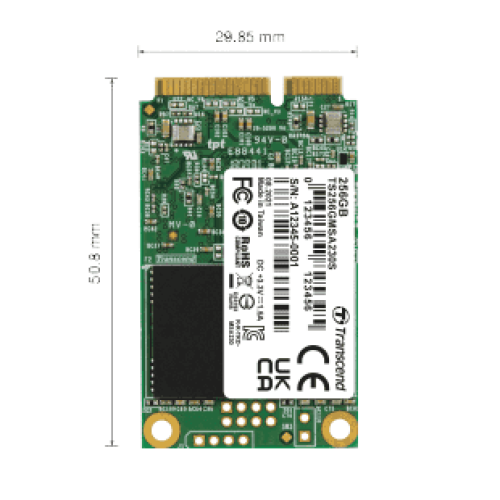

Dimensions 50.8 mm x 29.85 mm x 4.85 mm (2.00″ x 1.18″ x 0.19″)
Weight 9 g (0.32 oz)
Interface
Bus Interface
SATA III 6Gb/s
Storage
Flash Type
3D NAND flash
Capacity
64 GB/128 GB/256 GB
Operating Environment
Operating Temperature 0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)
256 GBup to 530/400 MB/s 128 GBup to 550/400 MB/s 64 GBup to 350/200 MB/s
4K Random Read/Write (IOmeter)
256 GBup to 45,000/70,000 IOPS 128 GBup to 55,000/70,000 IOPS 64 GBup to 35,000/50,000 IOPS
Terabytes Written (TBW)
256 GB160 TBW 128 GB80 TBW 64 GB40 TBW
Mean Time Between Failures (MTBF) 2,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.5 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate
CE/FCC/BSMI/KC/RCM
Warranty
Three-year Limited Warranty
Warranty Policy
Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when SSD Scope’s lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Linux Kernel 2.6.31 or later
Technology
TRIM & NCQ Command

S.M.A.R.T.

DDR3 DRAM Cache

Advanced Garbage Collection

DevSleep Mode

RAID Engine

LDPC Coding
