GIGABYTE UD1000GM PG5 V2 1000W – Alimentatore PSU modulare ATX 3.1 80 PLUS Gold
SKU: GP-UD1000GM-PG5-V2
Un alimentatore completamente modulare 1000 W ATX 3.1 con cavo nativo 12V-2x6 con potenza dichiarata fino a 600 W, quattro connettori PCIe 6+2-pin e due connettori CPU EPS in un alloggiamento lungo 140 mm.
- TipoAlimentatore
- Potenza alimentatore1000 W
111,87 €
(escl. IVA)Pagamento sicuro garantito
Spedito in 24 ore
Spedito da Irlanda e LettoniaNessuna dogana nell'UE
Consegna tracciataIn tutti i 27 paesi UE
Garanzia e assistenzaSupporto post-vendita
Carta, bonifico, cryptoPagamento sicuro
Specifiche: GIGABYTE UD1000GM PG5 V2 1000W – Alimentatore PSU modulare ATX 3.1 80 PLUS Gold
ModelloUD1000GM PG5 V2
Dimensioni150 × 140 × 86 mm
InterfacciaATX 12V v3.1; PCIe Gen 5.1 12V-2x6
Potenza alimentatore1000 W
Certificazione 80 PLUS80 PLUS Gold
Descrizione per: GIGABYTE UD1000GM PG5 V2 1000W – Alimentatore PSU modulare ATX 3.1 80 PLUS Gold
GIGABYTE · UD1000GM PG5 V2 · 1000 W · ATX 3.1 · 80 PLUS GOLD
1000 W of headroom for a single-GPU workstation.
A fully modular 1000 W ATX 3.1 power supply with a native 12V-2x6 cable rated up to 600 W, four PCIe 6+2-pin connectors and two CPU EPS connectors in a 140 mm long housing.
1000 W continuous · 12V-2x6 up to 600 W · 150 × 140 × 86 mm · 10-year warranty (subject to region)
Where it fits
A step up from 850 W for an AM5 workstation built around one current graphics card. GIGABYTE recommends an 850 W system PSU for the RTX 5080 Windforce OC SFF and 750 W for the RTX 5070 Ti Windforce OC SFF in our range, so a 1000 W unit leaves extra headroom for more drives, expansion cards and later upgrades. Add up your complete build before deciding.
GIGABYTE specifies the unit to Intel ATX 12V v3.1 and states that it handles power excursions of up to 3× GPU and 2× system power. All 1000 W are available on a single +12 V rail (83.3 A).
This is a power supply only, not a complete AI computer.
Compatibility before checkout
Graphics cards: the native 12V-2x6 (16-pin) cable delivers up to 600 W; GIGABYTE names the GeForce RTX 50 Series as an example. The RTX 5080 and RTX 5070 Ti Windforce cards in our range each have one 16-pin power socket for this cable. The ASUS Dual RTX 5060 Ti uses one 8-pin input, which a PCIe 6+2-pin connector covers.
Motherboards: the CPU/EPS cable carries two 4+4-pin connectors; the ASUS ProArt X870E-Creator WiFi, MSI MAG B850 Tomahawk Max WiFi and ASRock X870 Pro RS WiFi each have two 8-pin CPU power inputs.
Case: GIGABYTE lists the housing at 150 × 140 × 86 mm (140 mm deep); the Lian Li Lancool III accepts ATX power supplies under 220 mm.
Use only the modular cables supplied with this unit: modular cable pinouts differ between manufacturers and series, and mixing them can damage hardware.
GIGABYTE designed this unit for desktop PCs and states that use for other purposes, such as blockchain computing and mining, voids the warranty.
Connectors and cabling explained

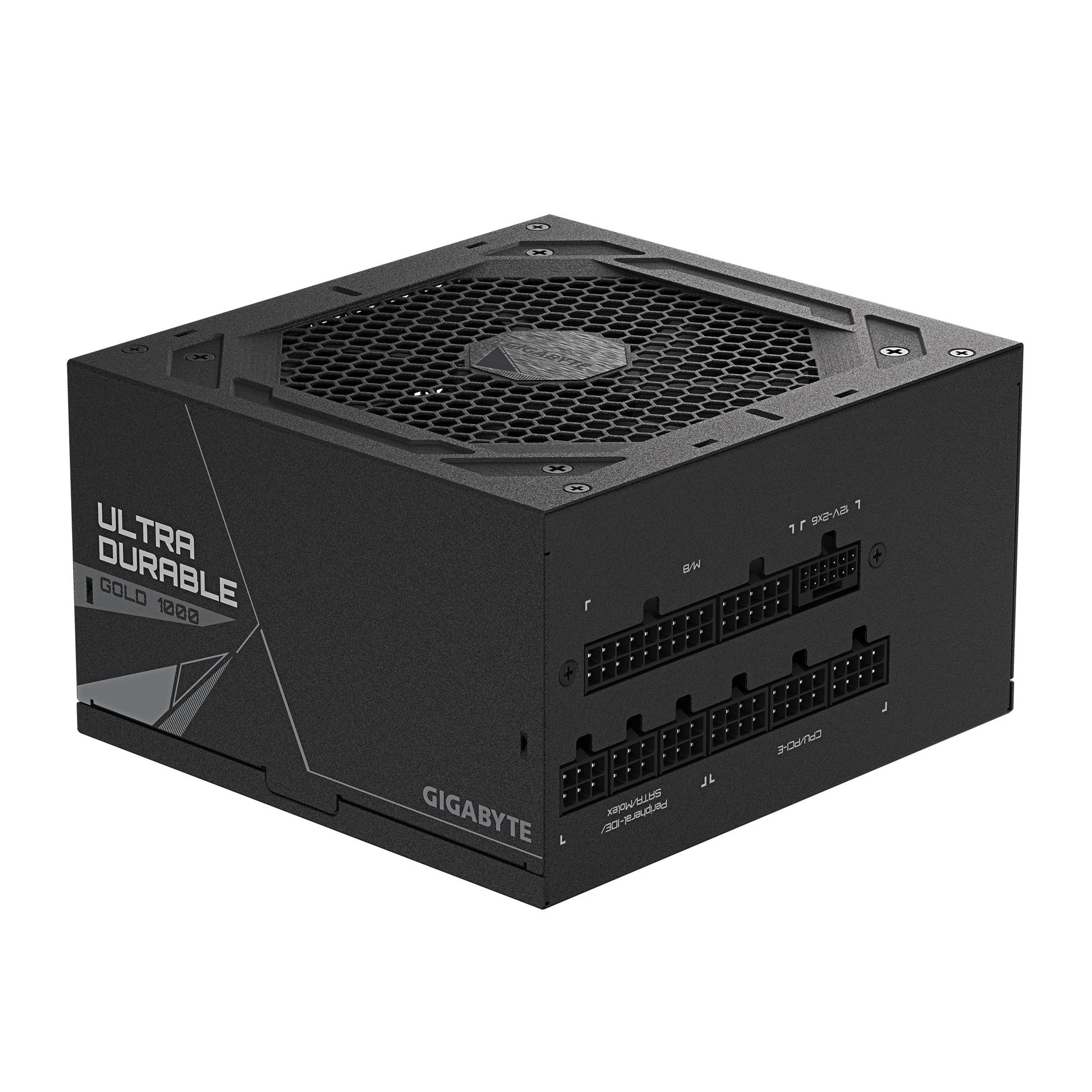

All cables are modular, flat-embossed and black. GIGABYTE lists: 20+4-pin ATX (610 mm); two CPU/EPS 4+4-pin connectors on one cable (650 mm + 200 mm); four PCIe 6+2-pin connectors on two cables (600 mm + 150 mm each); one 12V-2x6 (12+4-pin) cable (700 mm); eight SATA connectors on two cables (600 + 150 + 150 + 150 mm each); and three 4-pin Molex plus one floppy connector on one cable (500 + 150 + 150 + 150 mm).
Efficiency and noise

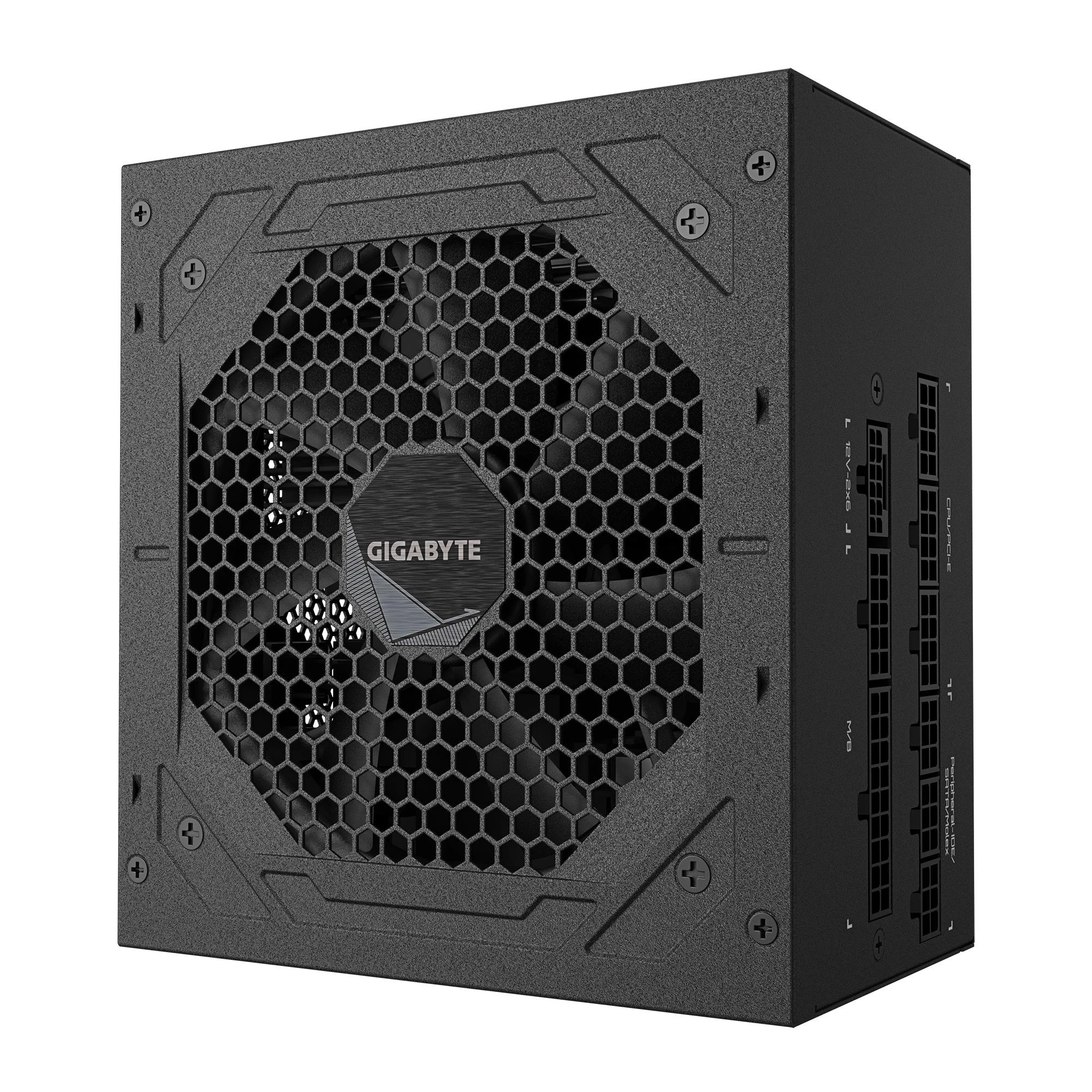

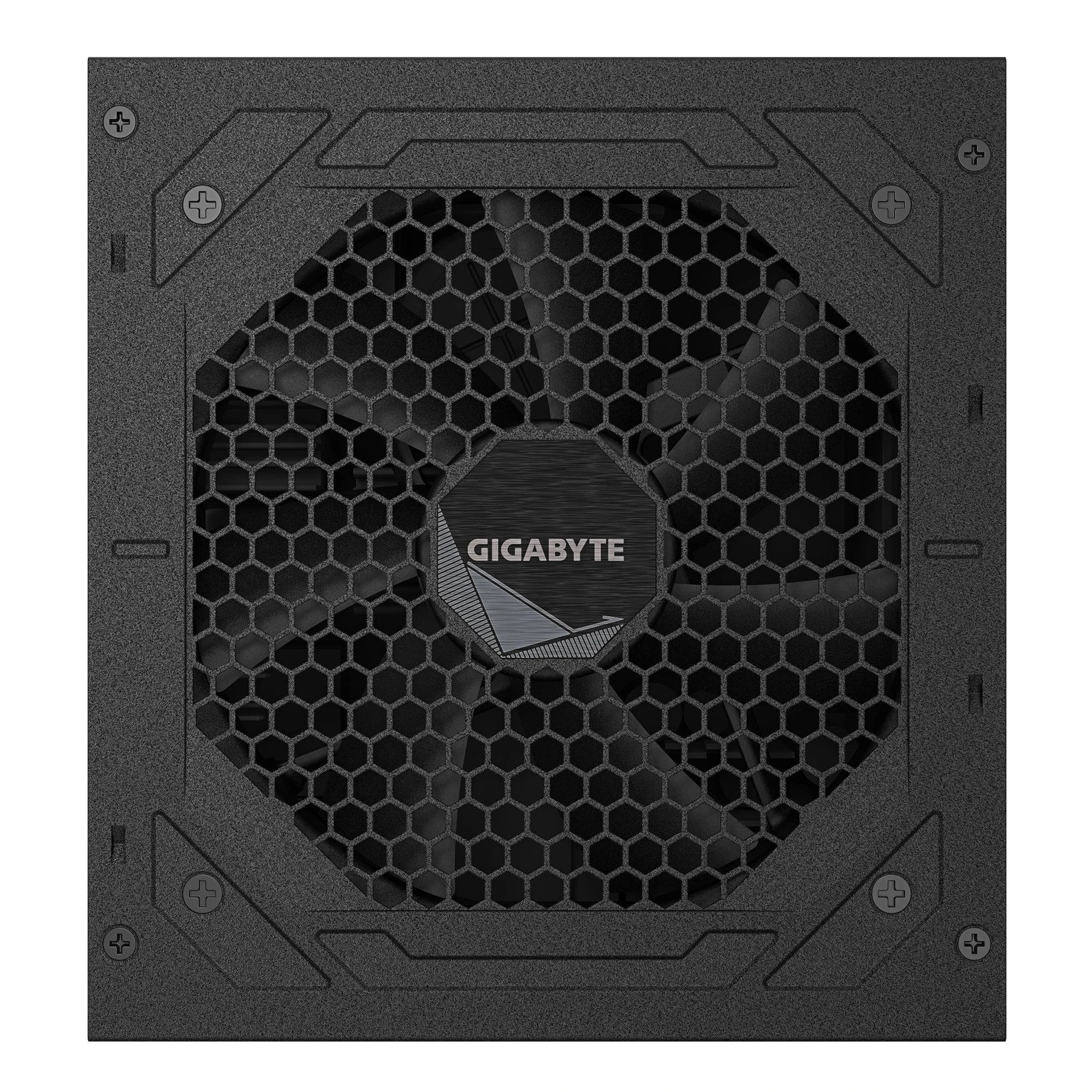

The unit is 80 PLUS Gold certified; GIGABYTE quotes 90 % efficiency at 50 % load. Its 120 mm hydraulic-bearing fan adjusts to the load and, according to GIGABYTE, stays silent when the system is idle or under 20 % load.
Technical specifications
| Manufacturer part number | GP-UD1000GM PG5 V2 |
|---|---|
| EAN | 4719331556112 |
| Model | UD1000GM PG5 V2 (the earlier UD1000GM PG5 Rev. 1.0/2.0 are different ATX 3.0 models) |
| Standard | Intel ATX 12V v3.1; PCIe Gen 5.1 ready |
| Continuous power | 1000 W |
| Efficiency | 80 PLUS Gold; 90 % at typical load |

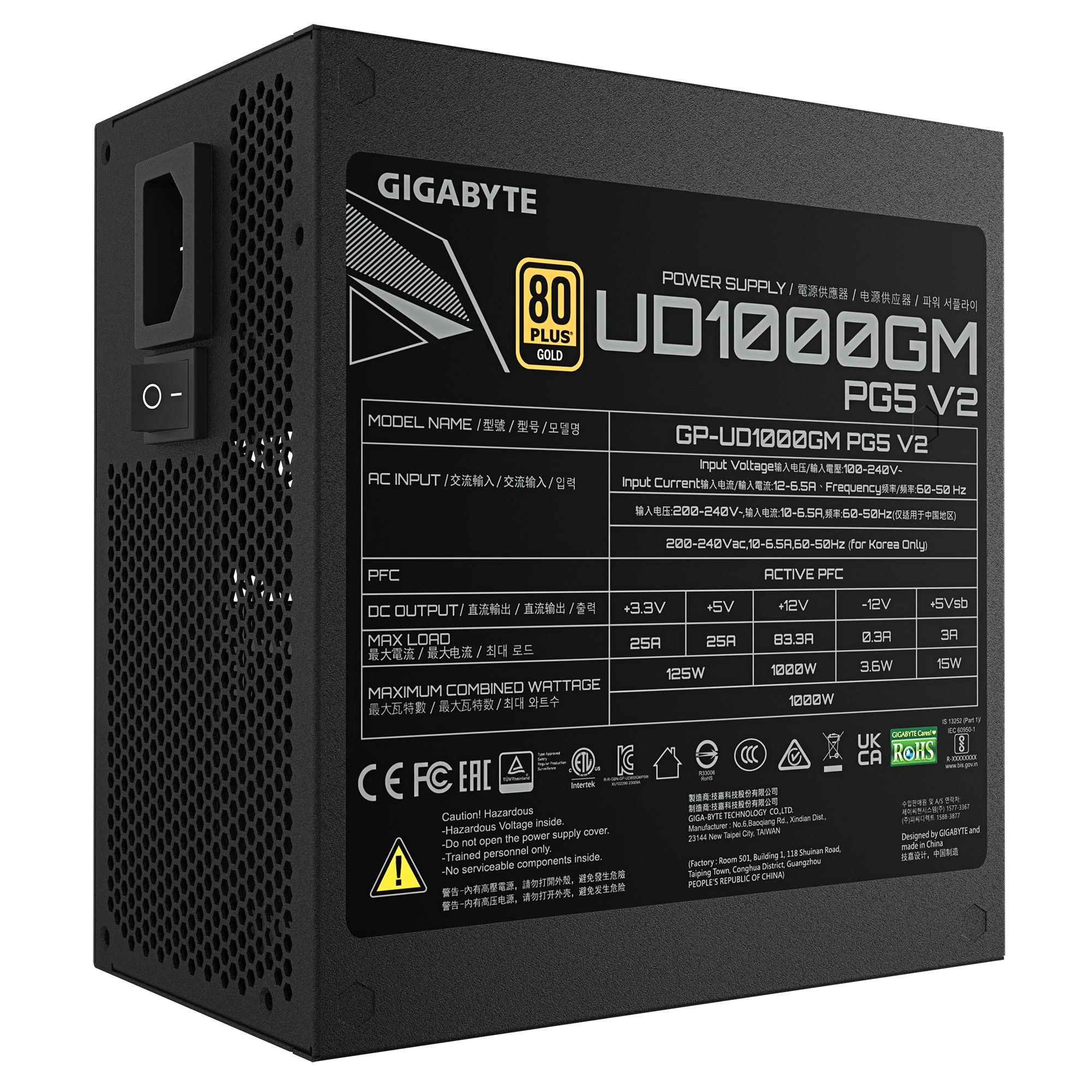

| DC output | +3.3 V 25 A, +5 V 25 A (125 W combined); +12 V 83.3 A, 1000 W, single rail; −12 V 0.3 A; +5 Vsb 3 A |
| AC input | 100–240 V, 50/60 Hz; active PFC (>0.9 typical) |
| Hold-up time / Power Good | >16 ms / 100–150 ms |
| MTBF | >100,000 hours |
| Protections | OVP, OPP, SCP, UVP, OCP, OTP |
| Fan | 120 mm hydraulic bearing (HYB) with smart fan control |
| Cabling | Fully modular, embossed all-black cables |
| Connectors | 1 × 20+4-pin ATX; 2 × CPU/EPS 4+4-pin; 1 × 12V-2x6 (600 W); 4 × PCIe 6+2-pin; 8 × SATA; 3 × 4-pin Molex; 1 × floppy |
| Dimensions (W × L × H) | 150 × 140 × 86 mm |
| Manufacturer warranty | 10 years, subject to region, as specified by GIGABYTE; desktop PC use only — GIGABYTE states that blockchain computing or mining use voids the warranty |
| Retail package (logistics data) | Approx. 255 × 210 × 120 mm; 2.7 kg |

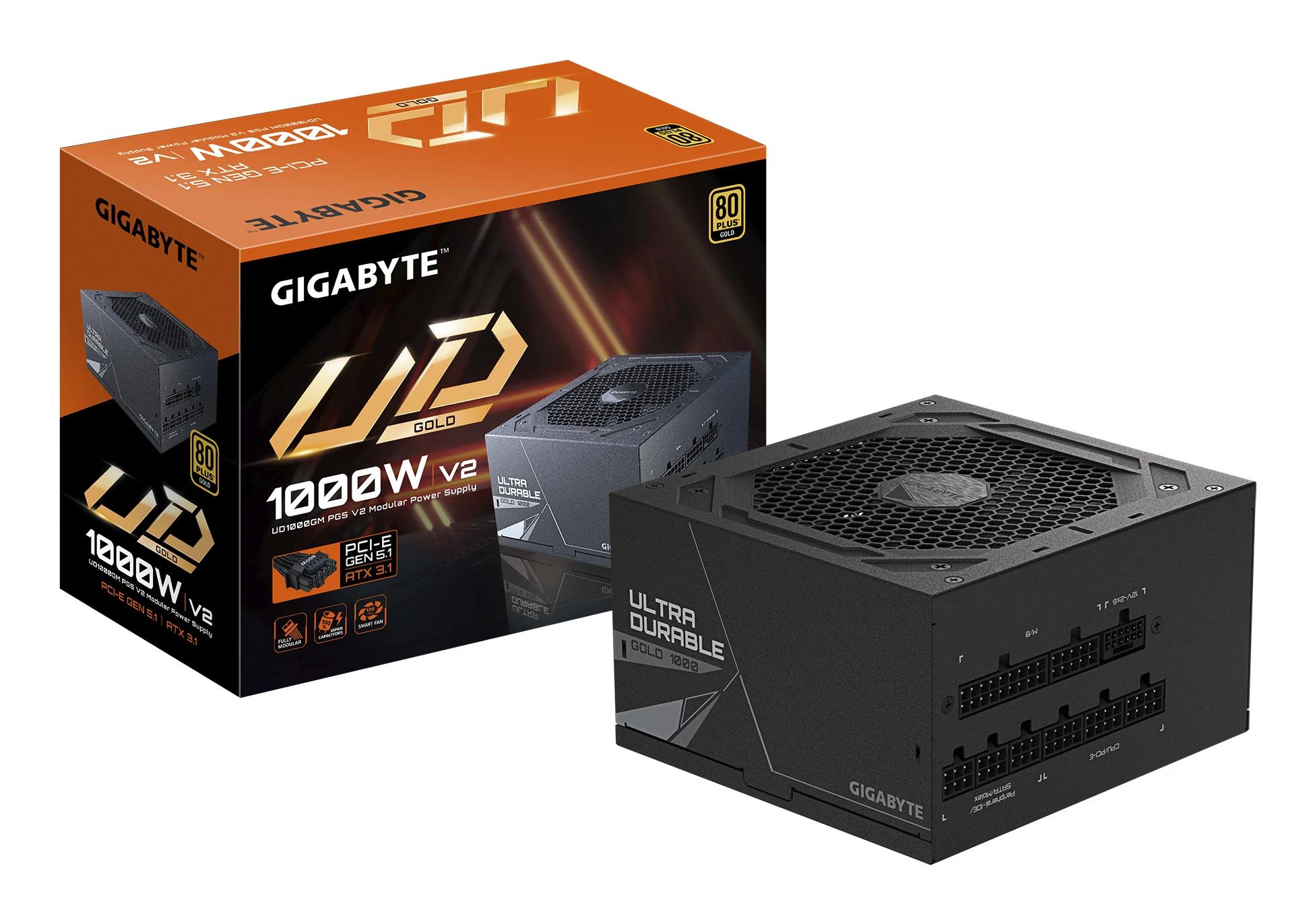

What is included
One GIGABYTE UD1000GM PG5 V2 power supply (GP-UD1000GM PG5 V2) with its fully modular cable set: one 20+4-pin ATX cable, one CPU/EPS cable with two 4+4-pin connectors, two PCIe cables with two 6+2-pin connectors each, one native 12V-2x6 (12+4-pin) graphics cable, two SATA cables with four connectors each, and one peripheral cable with three 4-pin Molex connectors and one floppy connector.
GIGABYTE does not publish a full box-contents list for this model, so an AC power cord, mounting screws and cable ties are not listed here as included, and no adapter is listed. Graphics card, motherboard, CPU and case are not included.
Frequently asked questions
Is this the ATX 3.1 version?
Yes. GIGABYTE specifies the UD1000GM PG5 V2 (GP-UD1000GM PG5 V2) as Intel ATX 12V v3.1 and PCIe Gen 5.1 ready. The earlier UD1000GM PG5 (Rev. 1.0 and Rev. 2.0) is an ATX 3.0 model, so look for “V2” in the model name.
Does it have a native cable for RTX 5080 and RTX 5070 Ti cards?
Yes. One native 12V-2x6 (16-pin) cable delivers up to 600 W. The Dual RTX 5060 Ti uses an 8-pin input, which the PCIe 6+2-pin connectors cover.
Can I run two graphics cards from it?
It has one 12V-2x6 cable and four PCIe 6+2-pin connectors on two cables. The GPU makers’ recommendations quoted above are for single-card systems, so calculate the full load of a two-GPU build before choosing a power supply.
Can I use it in a mining rig?
GIGABYTE designs this unit for desktop PCs and states that use for blockchain computing or mining voids its warranty.
Can I reuse modular cables from another power supply?
No. Modular cable pinouts differ between manufacturers and series; use only the cables supplied with this unit.
Plan your complete build
Pair it with a graphics card such as the Gigabyte RTX 5080 Windforce OC SFF or RTX 5070 Ti Windforce OC SFF and a case such as the Lian Li Lancool III RGB. For a lighter single-GPU build, compare the be quiet! Pure Power 13 M 850W. Browse our power supplies, computer components and AI workstation range.
Read GIGABYTE’s official UD1000GM PG5 V2 page and the user manual for current details.
