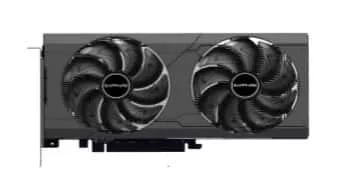

Product Specification
GPU: NAVI 22 Family
Stream Processors: 2304
Compute Units: 36
Engine Clock: 2132 MHz
Memory Clock: 16 Gbps
On board Frame Buffer: 10GB/160bit
GDDR6 Bus Interface: PCI Expresss 4.0 x16
Display Output: N/A
External Power Connector: PCI Express 8 pin x 1
Cooling Solution: Active Dual Fan
Form Factor: 2 slot
Board Dimension: Dimension: 242(L)X 119.85(W)X 41(H)mm
Bracket: Full Height
Operating System: Linux Based System Only.
Packaging Options: Bulk

Reference Ethash Performance
Default ~38.05 MH/s@~165W TGP, depending on the tuning of each card, ~41.6 MH/s@~93W could be reached. ** ** Refer to Sapphire GPRO X080 Linux Ubuntu 20.04.3 installation & tuning guide for reference.

SYSTEM REQUIREMENTS
• PCIExpress®basedPCisrequiredwithoneX16lanegraphicsslotavailableonthemotherboard.
• 500W(orgreater)powersupplywithminimumonePCIE8pinpowerconnectorisrequired.
• Minimum8GBofsystemmemory.Recommended16GBormore.
• Installationsoftwarerequiresakeyboard,amouse,andadisplay.
• Adisplaywithdigitalinput(HDMI™orDisplayPort)isrequired.
• SupportLinuxbasedsystemonly • 64-bitoperatingsystemrequired.
• Requiresmotherboard/CPUwithintegratedgraphicsprocessorandatleastonedisplayoutput.
