GIGABYTE GeForce RTX 5060 Ti EAGLE OC 16GB GDDR7 Graphics Card

GIGABYTE · Desktop graphics

GIGABYTE GeForce RTX 5060 Ti EAGLE OC 16GB GDDR7 Graphics Card

The EAGLE OC is GIGABYTE’s compact dual-fan RTX 5060 Ti with the highest factory boost clock of the three GIGABYTE 16G variants we list (2617 MHz).

Reasons to choose it

GeForce RTX 5060 Ti graphics with 16GB GDDR7 give room for high-resolution textures, DLSS 4 games, GPU-accelerated creative apps and local AI models that need more than 8GB of video memory. The compact 215 mm, 2-slot WINDFORCE cooler suits mid-tower and many small cases.

Other RTX 5060 Ti 16GB cards carry the same 16GB VRAM, so choosing between them is a cooler and size choice, not a VRAM upgrade. AI and rendering fit depends on the application and model size.

Check fit, power and connectors first

• Case: at least 215 mm free GPU length plus cable clearance; card height 122 mm.
• Slots: two free expansion slots (40 mm thick card).
• Motherboard: PCIe x16 slot; PCIe 5.0 recommended, PCIe 4.0/3.0 work at the slot speed.
• Power: one 8-pin PCIe cable from the PSU; GIGABYTE recommends a 650W unit.
• Displays: 3 × DisplayPort 2.1b and 1 × HDMI 2.1b; no DVI or VGA output.

Specifications

Specifications from the GIGABYTE product page for GV-N506TEAGLE OC-16GD; the manufacturer may revise them.

Included and not included

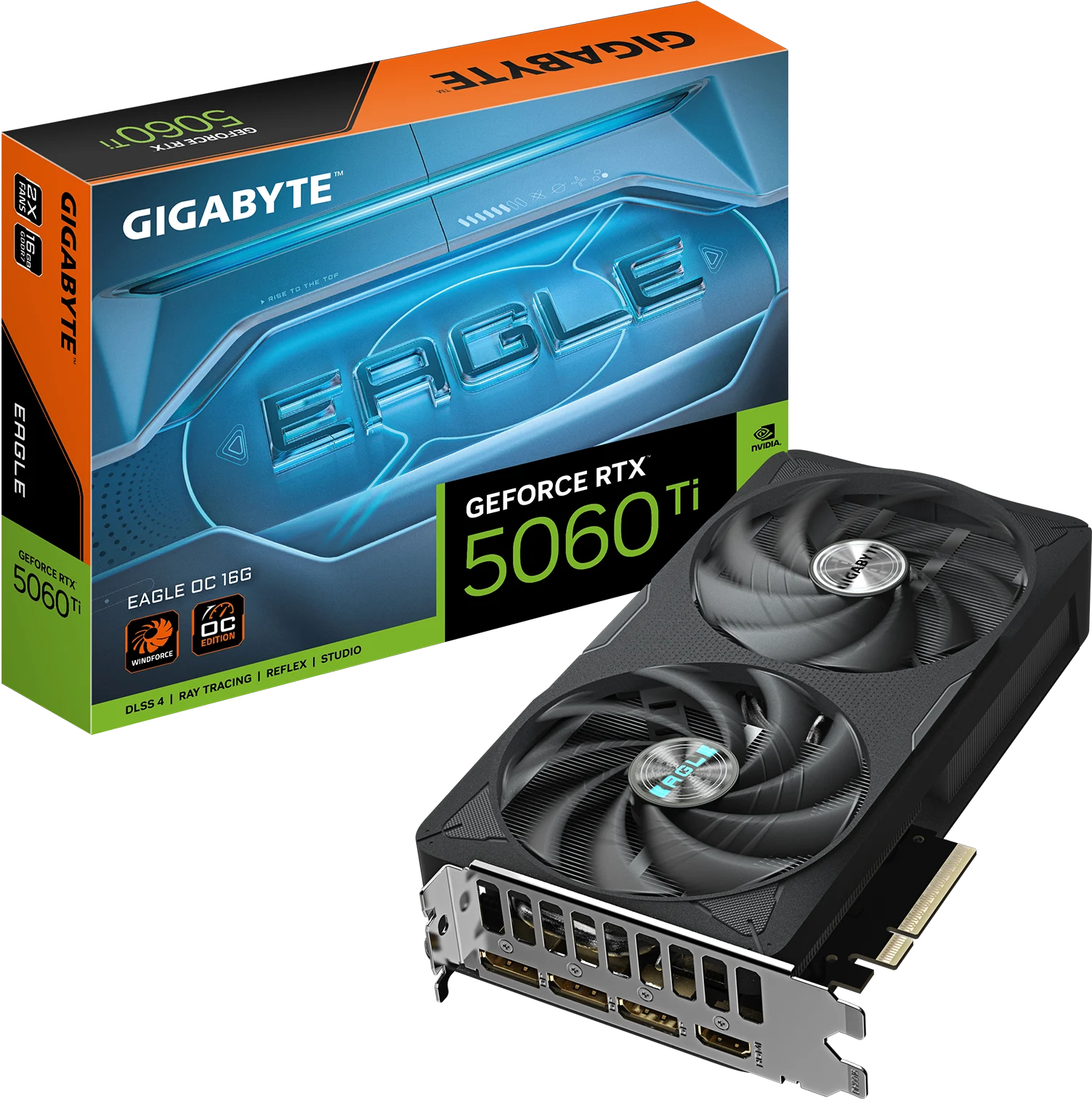

• Included: graphics card in GIGABYTE retail packaging, quick guide.
• Not included: power supply, PCIe power cables, display cables, drivers on disc (download the latest NVIDIA driver).

Dispatch, packing and warranty

Dispatch in 2–4 business days. Stock shown is not a reservation; transit time is separate.

Estimated protective shipping parcel: 43 × 34 × 16 cm, about 1.76 kg. These are packing estimates, not product dimensions.

36-month manufacturer warranty, proof of purchase and manufacturer terms apply.

Frequently asked

Is the EAGLE OC 16G a VRAM upgrade over other RTX 5060 Ti 16GB cards?

No. Every RTX 5060 Ti 16GB card, including the WINDFORCE OC 16G and WINDFORCE MAX OC 16G, has 16GB GDDR7 on a 128-bit bus. Choosing between them is a cooler, size and factory-clock choice, not more video memory.

What power supply do I need for this card?

GIGABYTE recommends a 650W power supply and the card uses one 8-pin PCIe power connector. Check that your PSU has a free 8-pin PCIe cable and enough headroom for the CPU and other parts.

Will it fit in my case?

The card measures 215 mm long, 122 mm tall and 40 mm thick, a 2-slot design. Measure free GPU length in your case and check that two expansion slots are open.

Does it work in a PCIe 4.0 or 3.0 motherboard?

Yes. The card is a PCI Express 5.0 x16 slot card and is backward compatible with PCIe 4.0 and 3.0 x16 slots, where the link runs at the slower slot speed.

Which display outputs does it have?

Three DisplayPort 2.1b outputs and one HDMI 2.1b output, with up to four displays at once and a digital maximum resolution of 7680 x 4320 according to GIGABYTE.

How is warranty handled?

The card carries a 36-month manufacturer warranty with bring-in service; proof of purchase and GIGABYTE terms apply. Contact us with your order number and we will guide you through the claim.
