GIGABYTE GeForce RTX 5070 Ti WINDFORCE OC SFF V2 16GB GDDR7 Graphics Card

Explore PC components · graphics cards · AI workstation parts.

Reasons to pick this card

• RTX 5070 Ti with 16 GB GDDR7 on a 256-bit bus — strong for 1440p/4K gaming and local AI inference.
• 261 mm length and 2.5-slot thickness: SFF-Ready sizing for compact cases.

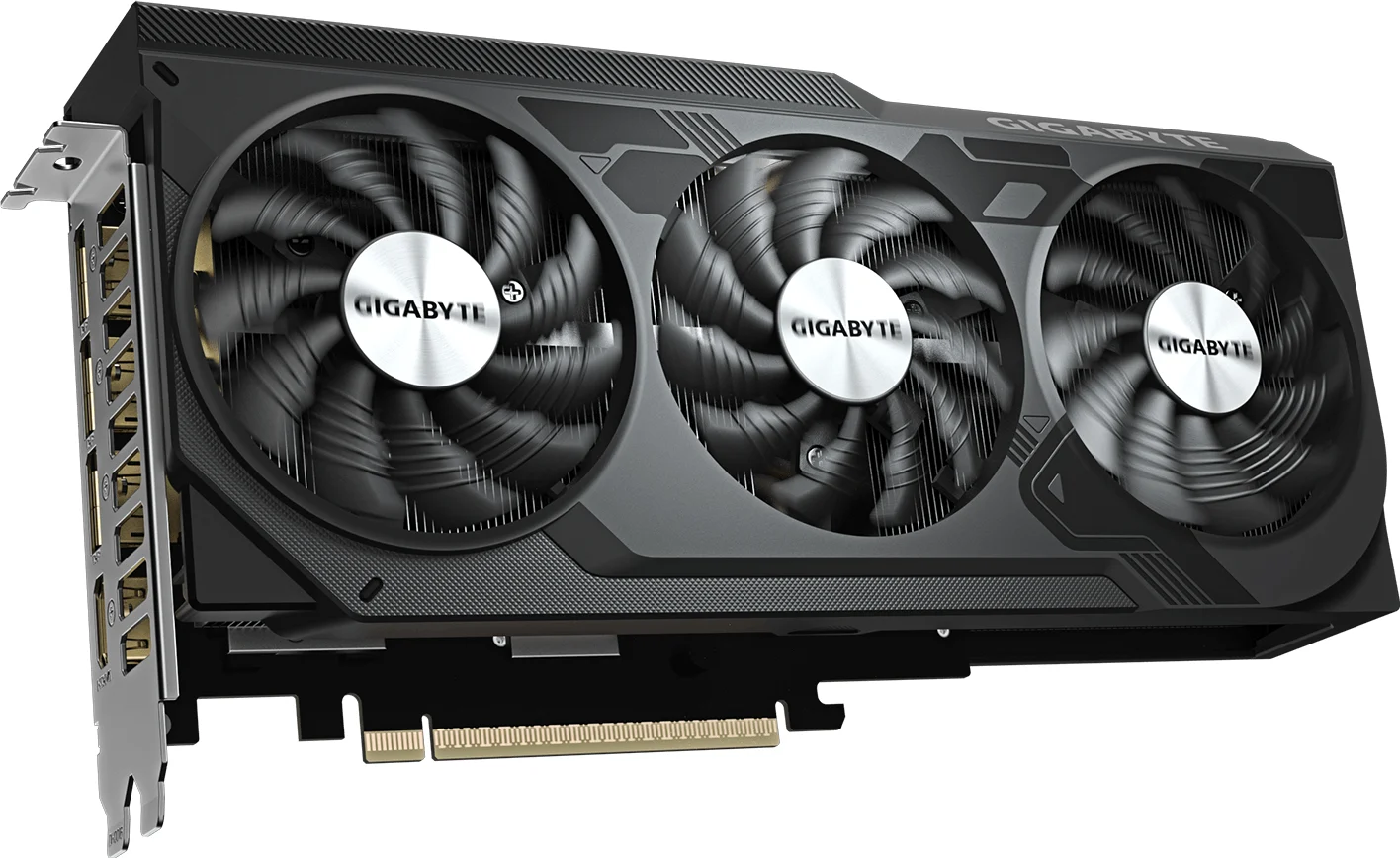

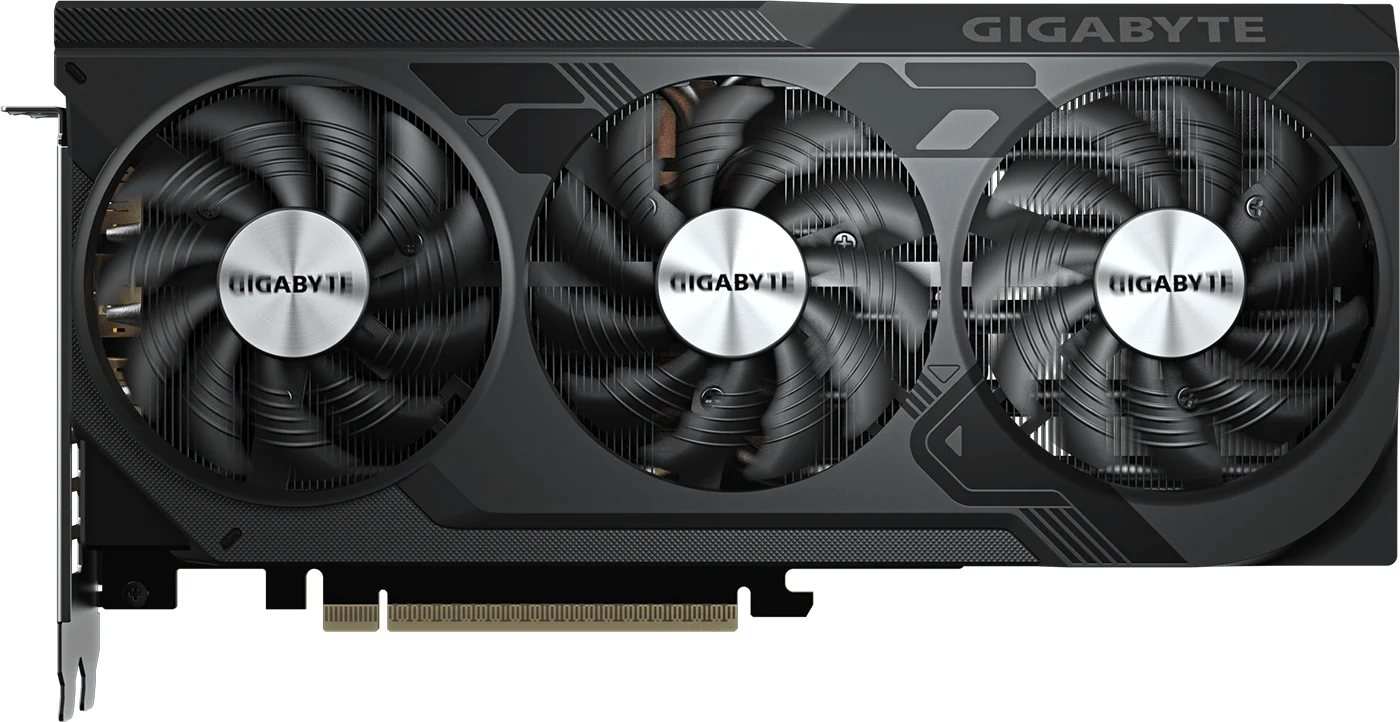

• Triple-fan WINDFORCE cooling.
• Adapter included for power supplies with only 8-pin PCIe cables.

This is the V2 revision (part GV-N507TWF3OCV2-16GD). We also list the first-revision GV-N507TWF3OC-16GD; both carry the same RTX 5070 Ti GPU and 16 GB GDDR7, so the choice between them is a revision/cooler choice, not a VRAM or GPU upgrade. Check the dimensions below against your case.

Fit and compatibility checks

Specifications

Included and not included

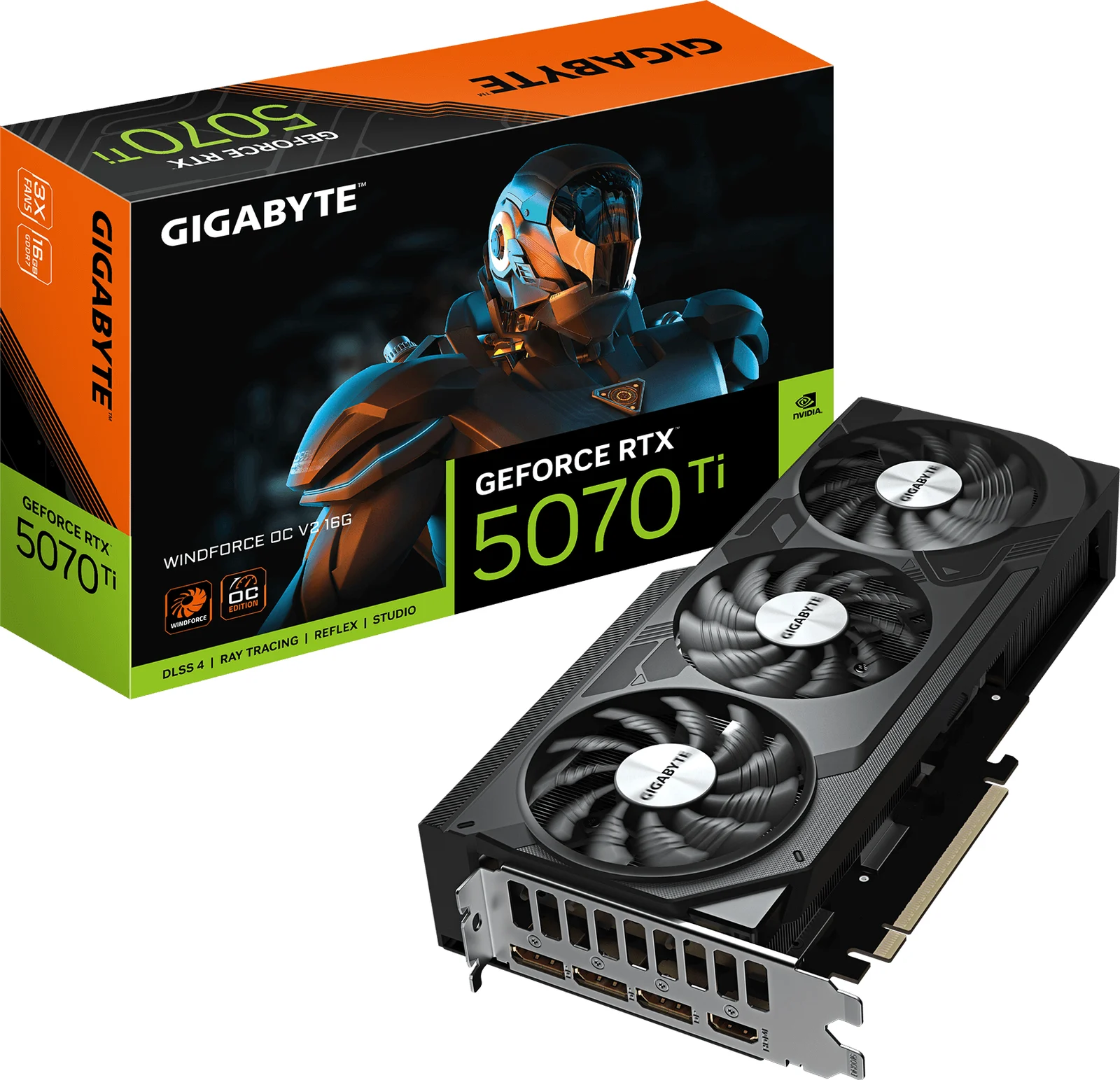

Included: graphics card in GIGABYTE retail packaging; quick guide; 1 × 12v-2x6 to 2 × pcie 8-pin adapter.

Not included: power supply, PSU cables beyond the listed accessories, display cables, drivers on disc (download current drivers from the GPU vendor).

Dispatch, warranty and packing

Dispatch in 2–4 business days. Displayed stock is not a reservation, and transit time is separate from dispatch.

Warranty: 36-month manufacturer warranty, proof of purchase and manufacturer terms apply. Statutory rights are unaffected.

The shipping values used for delivery quotes (50 × 30 × 20 cm, 4.0 kg) are protective packing estimates, not product dimensions.

Frequently asked questions

Will this card fit in my case?

GIGABYTE lists the card at 261 × 126 × 50 mm (2.5 slots (50 mm thick)). Measure the free GPU length in your case and allow extra space for the power cable and airflow before ordering.

Which power supply should I use?

GIGABYTE recommends a 750 W power supply with 1 × 16-pin (12V-2x6) for a typical system. Higher-power CPUs or many drives may need more; check your whole build.

Which display outputs does it have?

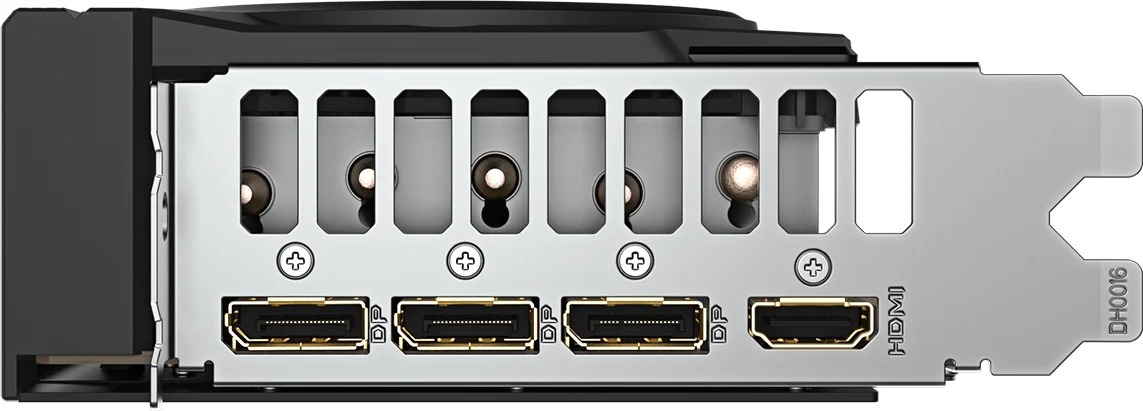

It provides 3 × DisplayPort 2.1b, 1 × HDMI 2.1b and supports up to four displays at up to 7680 × 4320 digital resolution.

Is the 16 GB a VRAM upgrade over other versions?

This is the V2 revision (part GV-N507TWF3OCV2-16GD). We also list the first-revision GV-N507TWF3OC-16GD; both carry the same RTX 5070 Ti GPU and 16 GB GDDR7, so the choice between them is a revision/cooler choice, not a VRAM or GPU upgrade. Check the dimensions below against your case.

Can it be used for local AI work?

Yes, its 16 GB of GDDR7 can hold many small and mid-size models for inference; very large models need more memory or several GPUs. Software support depends on your framework and drivers.

What warranty applies?

36-month manufacturer warranty, proof of purchase and manufacturer terms apply. Contact Mineshop first for claim help; your statutory rights are not affected.

Manufacturer reference: GIGABYTE GV-N507TWF3OCV2-16GD specifications.
