GIGABYTE Radeon RX 9060 XT GAMING OC ICE 16GB GDDR6 Graphics Card

Explore PC components · graphics cards · AI workstation parts.

Reasons to choose it

• 16 GB of GDDR6 on a 128-bit bus for high-resolution textures and larger local AI models than 8 GB cards can hold.
• Factory overclock: boost up to 3320 MHz and game clock up to 2780 MHz (reference 3130 / 2530 MHz).

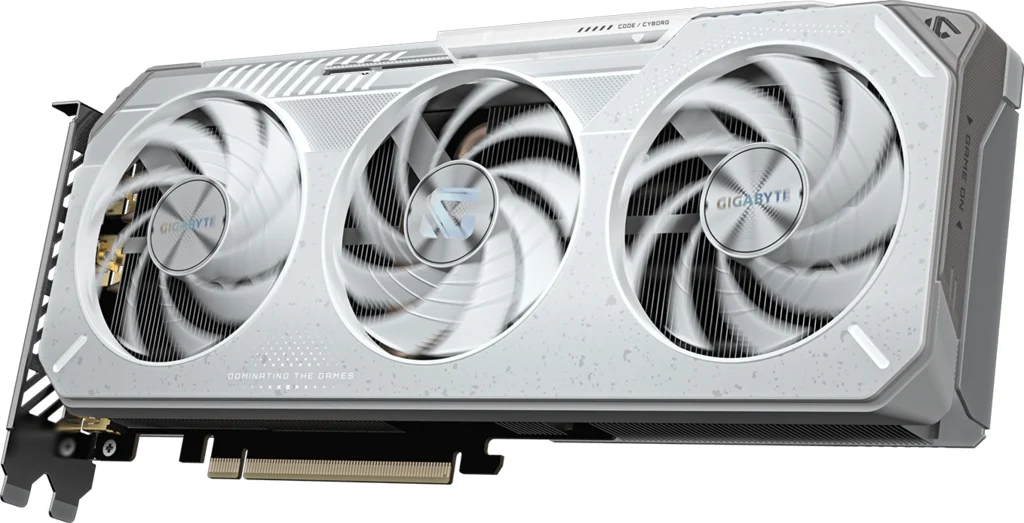

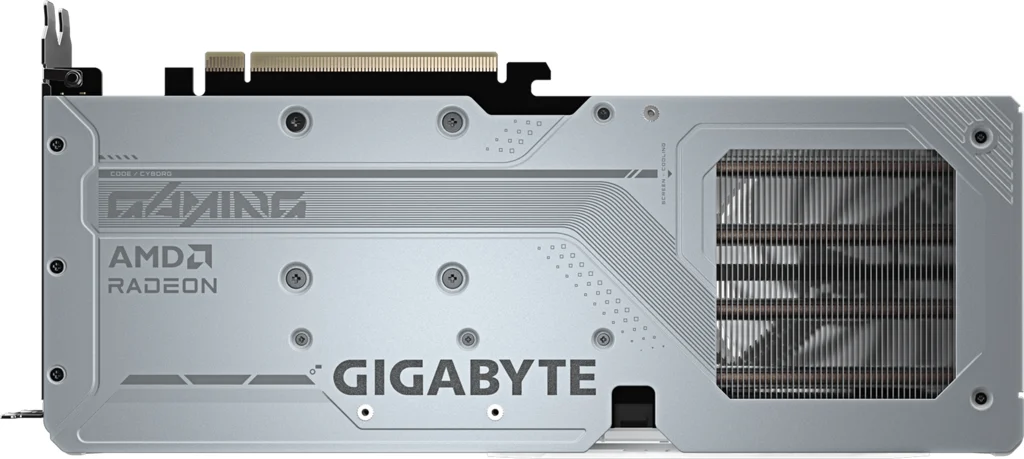

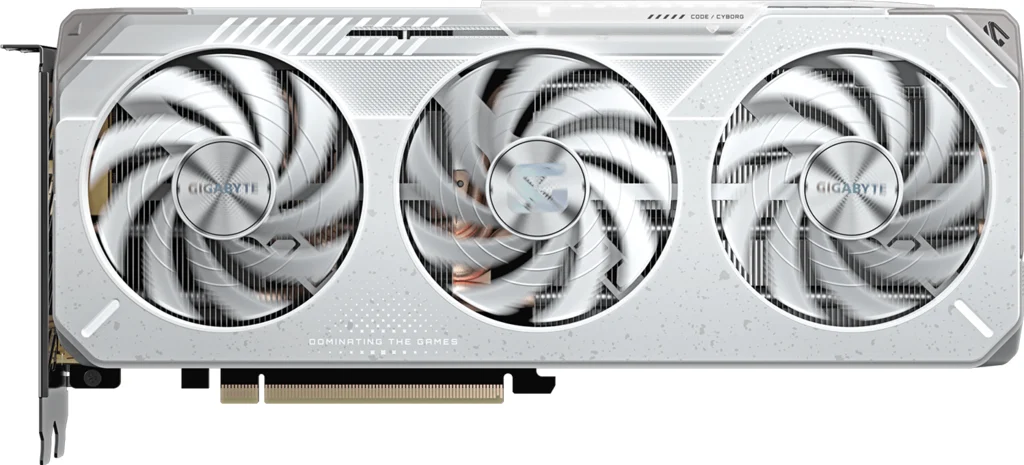

• White ICE cooler and backplate for white-themed builds, with three fans on a 281 mm card.
• Modest power requirement: one 8-pin connector and a 450 W recommended PSU.

Fit and compatibility checks

Key specifications

In the box

• GIGABYTE Radeon RX 9060 XT GAMING OC ICE 16G graphics card
• VGA manual (as listed by GIGABYTE)

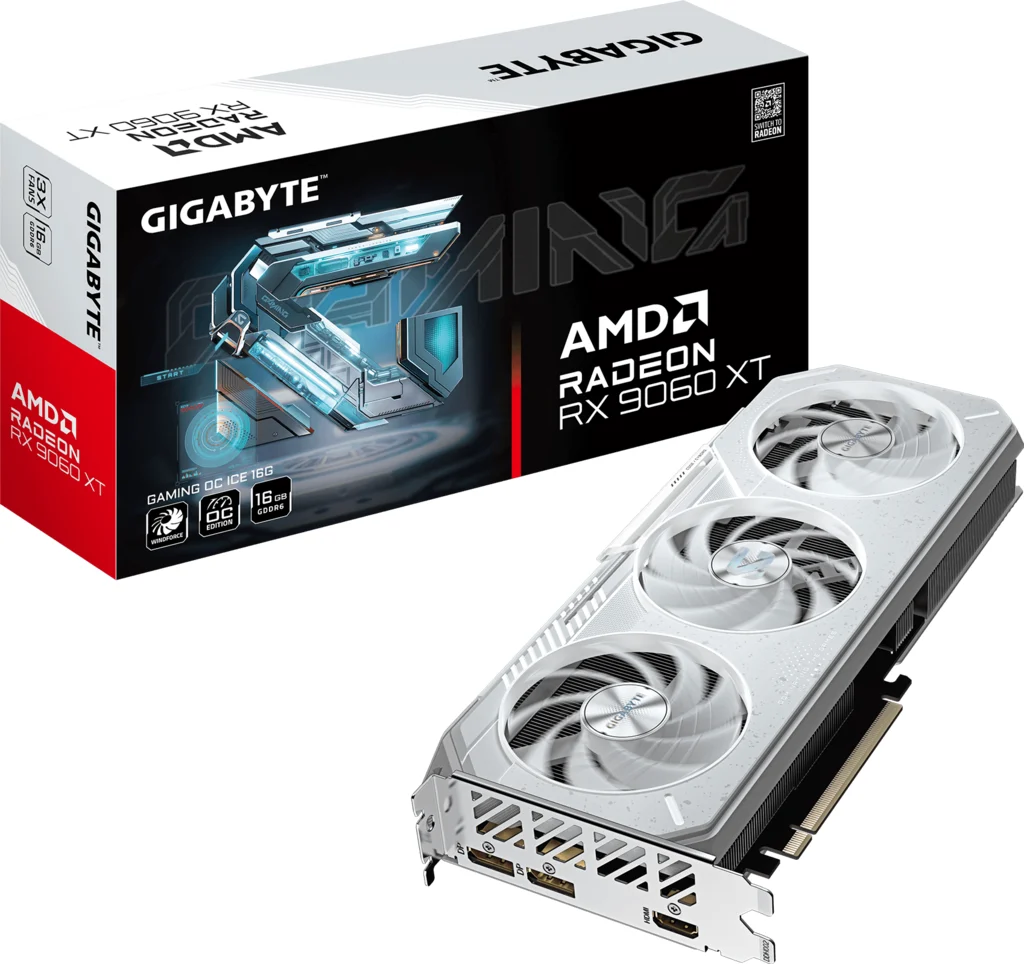

• Manufacturer retail packaging

Not included

• Power supply or power cables
• Display cables
• Games or software bundles unless stated by the manufacturer

Dispatch, warranty and packing

Dispatch in 2–4 business days. Displayed availability is not a reservation, and transit time is separate from dispatch.

Warranty: 36-month manufacturer warranty, proof of purchase and manufacturer terms apply. Statutory rights are unaffected.

Shipping parcel used for delivery quotes: about 46 × 29 × 18 cm and 2.1 kg. These are protective packing estimates, not product dimensions.

Frequently asked questions

Is this the 16 GB version of the RX 9060 XT?

Yes. This GAMING OC ICE model (GV-R906XGAMINGOCICE-16GD) carries 16 GB of GDDR6 memory on a 128-bit bus.

Will it fit my case?

The card measures 281 × 118 × 40 mm. Check that your case offers at least 281 mm of GPU length and about two slots of clearance, plus space for the 8-pin cable.

Which power supply do I need?

GIGABYTE recommends a 450 W PSU and the card uses one 8-pin PCIe connector. Check your complete build, especially with a high-power CPU.

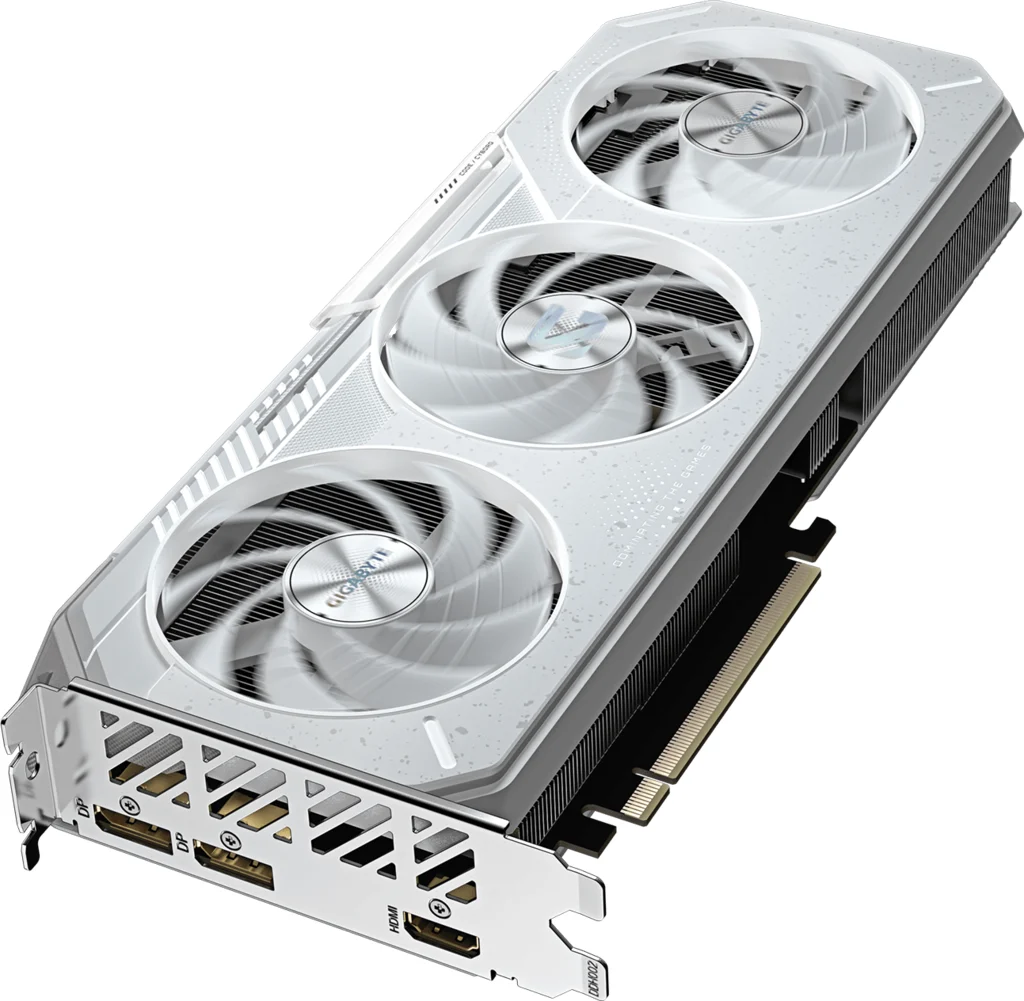

Which display outputs does it have?

Two DisplayPort 2.1a outputs and one HDMI 2.1b output, with support for up to three displays and 7680 × 4320 digital resolution.

Does it work in a PCIe 4.0 motherboard?

Yes. It is a PCI Express 5.0 card and is backward compatible with PCIe 4.0 and 3.0 x16 slots, running at the slot's generation bandwidth.

Is the white ICE edition faster than the black GAMING OC?

Both use the same Radeon RX 9060 XT GPU and 16 GB of memory; the ICE edition is mainly a colour and cooler-styling choice, not a VRAM upgrade.

Manufacturer reference: GIGABYTE GV-R906XGAMINGOCICE-16GD specifications.
