Placă de bază MSI PRO Z790-P WIFI DDR5 ATX — LGA1700
SKU: PROZ790-PWIFI
- TipPlacă de bază
- SocketLGA1700
- ChipsetZ790
- FormatATX
142,87 EUR
(excl.VAT)Finalizare comandă garantată în siguranță
Expediere în 24 h
Livrare din Irlanda și LetoniaFără vamă în UE
Livrare urmărităÎn toate cele 27 de țări UE
Garanție și suportAsistență post-vânzare
Card, transfer, criptoPlată securizată
Specificații: Placă de bază MSI PRO Z790-P WIFI DDR5 ATX — LGA1700
ModelPRO Z790-P WIFI
Garanție36-month commercial warranty; eligibility and applicable terms apply
SocketLGA1700
ChipsetZ790
FormatATX
Tip memorieDDR5
Descriere pentru: Placă de bază MSI PRO Z790-P WIFI DDR5 ATX — LGA1700
BUILD THE PLATFORM, NOT THE BOTTLENECK
A practical Z790 foundation for a focused desktop workstation
Build around an Intel LGA1700 processor with an ATX board that combines DDR5 memory, four M.2 connectors, 2.5GbE and Wi-Fi 6E. Explore our motherboards and AI workstation components to plan a complete system. This is a motherboard, not a complete PC or a multi-GPU server platform.
Where this product makes sense
A balanced single-GPU build
A CPU-linked Gen5 x16 slot supports the primary graphics card. The remaining long slots are lower-bandwidth expansion paths, useful for devices whose lane requirements fit them.
Storage without cable clutter
Four M.2 slots accept PCIe 4.0 x4 storage. This board does not provide a native PCIe 5.0 M.2 connector; a Gen5 SSD operates at the negotiated Gen4 link speed.
Wired and wireless connectivity
Intel 2.5GbE and Wi-Fi 6E are suitable for desktop networking. A 10GbE switch does not turn the onboard 2.5GbE port into 10GbE; that upgrade needs a compatible network adapter.
Compatibility and limits
- Use only a supported LGA1700 Intel processor; 14th Gen support can require a BIOS update. Confirm the exact CPU against the current MSI support list and the supplied BIOS before assembly.
- DDR5 non-ECC unbuffered UDIMMs only: DDR4 and server RDIMMs do not fit this platform. Intel XMP 3.0 is supported, but rated overclock speeds depend on CPU, module rank, DIMM population and QVL.
- The current manufacturer specification lists up to 256GB. Achievable capacity depends on compatible DIMMs, CPU and BIOS. Four DIMMs generally impose a lower maximum memory clock than one DIMM per channel.
- HDMI 2.1 and DisplayPort 1.4 require a processor with integrated graphics. An F/KF CPU cannot supply video through the motherboard display connectors.
- Use an ATX-compatible case, appropriate CPU cooling and PSU connections. Wide graphics cards can cover adjacent expansion slots. The board is not a four-electrical-x16 Gen5 workstation board.
- M.2_3 and M.2_4 support PCIe and SATA modes. Check the current manual for SATA-port interactions, drive population rules and any supported bifurcation before choosing an adapter. No unverified lane-sharing or bifurcation capability is promised.
Specifications
| Brand | MSI |
|---|---|
| Exact manufacturer part number | PROZ790-PWIFI |
| EAN / GTIN-13 | 4711377015738 |
| Chipset / CPU socket | Intel Z790 / LGA1700 |
| Processor families | Supported Intel Core 12th, 13th and 14th Gen; compatible Pentium Gold/Celeron; CPU and BIOS dependent |
| Memory | 4 × DDR5 DIMM; dual-channel; non-ECC, unbuffered; Intel XMP 3.0 |
| Published memory ceiling | Up to 256GB in current MSI specification; compatible CPU, BIOS and memory required |
| Memory clock limits | Up to 7000+ MHz OC at 1DPC 1R; 6600+ at 1DPC 2R; 6400+ at 2DPC 1R; 5600+ at 2DPC 2R; not guaranteed XMP results |
| PCI_E1 | CPU-connected PCIe 5.0, up to electrical x16 |
| PCI_E2 | Chipset-connected PCIe 3.0, up to electrical x1 |
| PCI_E3 | Chipset-connected PCIe 4.0, up to electrical x4 |
| PCI_E4 | Chipset-connected PCIe 3.0, up to electrical x1 |
| Mechanical expansion layout | 3 full-length x16 slots plus 1 x1 slot; full-length does not imply electrical x16 |
| M.2_1 | CPU PCIe 4.0 x4; 2242/2260/2280/22110 |
| M.2_2 | Chipset PCIe 4.0 x4; 2242/2260/2280 |
| M.2_3 / M.2_4 | Chipset PCIe 4.0 x4 or SATA; 2242/2260/2280; consult manual for shared-port rules |
| SATA | 6 × SATA 6Gb/s |
| Network | Intel 2.5GbE; pre-installed Intel Wi-Fi 6E module; Bluetooth 5.3 |
| Wireless limits | 6GHz availability depends on local regulations and OS; a compatible Wi-Fi 6E network is required |

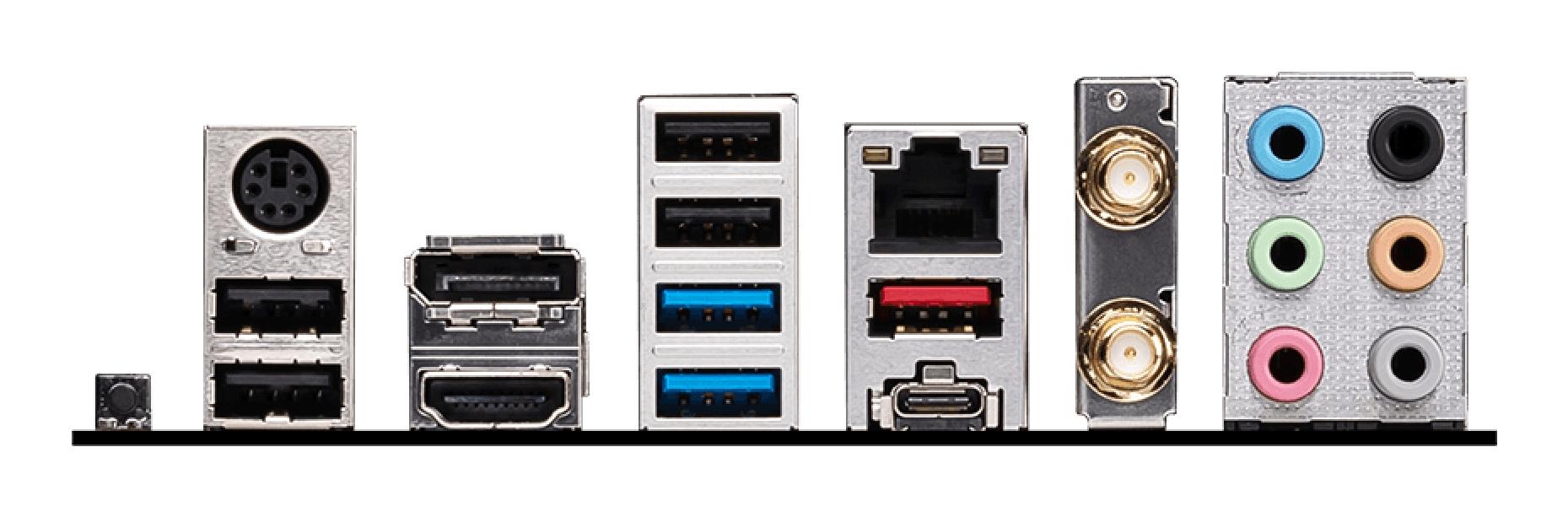

| Rear USB | 4 × USB 2.0; 2 × 5Gb/s Type-A; 1 × 10Gb/s Type-A; 1 × 20Gb/s Type-C |
| Display / audio | HDMI 2.1 and DP 1.4 with CPU graphics; Realtek ALC897, 7.1-channel audio |
| Board form factor / size | ATX; 304.8 × 243.84 mm (board, not dispatch parcel) |
What is included
One PRO Z790-P WIFI motherboard with pre-installed Wi-Fi module; 2 SATA cables; 3 M.2 clips; I/O shield; Wi-Fi antenna; quick installation guide and EU regulatory notice. Accessory bundle is shown by the exact official box-content diagram.
Not included: CPU, CPU cooler, RAM, graphics card, SSDs, PSU, case and operating-system licence are not included.
Delivery and warranty
Dispatch within 24 hours. This is dispatch timing, not an arrival guarantee. Availability is not a reservation. Transit time depends on the destination.
The commercial product warranty term is 36 months, subject to the applicable eligibility and claim terms. Keep the purchase receipt and serial number. Contact Mineshop for claim intake before returning the board; do not assume a universal regional MSI direct-service entitlement or a fixed repair turnaround. Statutory consumer rights are unaffected.
Six useful answers before ordering
Will it work with a 14th Gen Intel CPU?
The current MSI support specification includes 14th Gen, but the exact processor and installed BIOS must be checked. Update the BIOS as required before relying on CPU support.
Can I reuse DDR4 or server ECC RDIMMs?
No. This model uses DDR5 non-ECC unbuffered DIMMs. DDR4 is a different physical/electrical standard, and registered server DIMMs are not supported.
Are all three long PCIe slots x16?
No. The primary CPU slot is Gen5 x16, while the chipset long slots provide up to Gen4 x4 and Gen3 x1. Slot length alone is not a bandwidth specification.
Will a Gen5 M.2 SSD run at Gen5 speed?
No. The M.2 slots provide up to PCIe 4.0 x4. A backward-compatible Gen5 NVMe SSD can operate there, but its negotiated link is limited by the board.
Why might HDMI or DisplayPort show no picture?
The motherboard outputs require integrated graphics in the installed CPU. Intel F/KF models require a separate graphics card and its display outputs.
Is this a complete workstation, and what arrives?
No. You receive the board and its listed accessory bundle, not a computer. Supply a compatible CPU, cooler, DDR5 memory, storage, PSU and ATX case; confirm BIOS and clearances before building.
Official reference: MSI exact specification
