MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS 8GB GDDR7 Graphics Card

Explore PC components · graphics cards · AI workstation parts.

Reasons to choose it

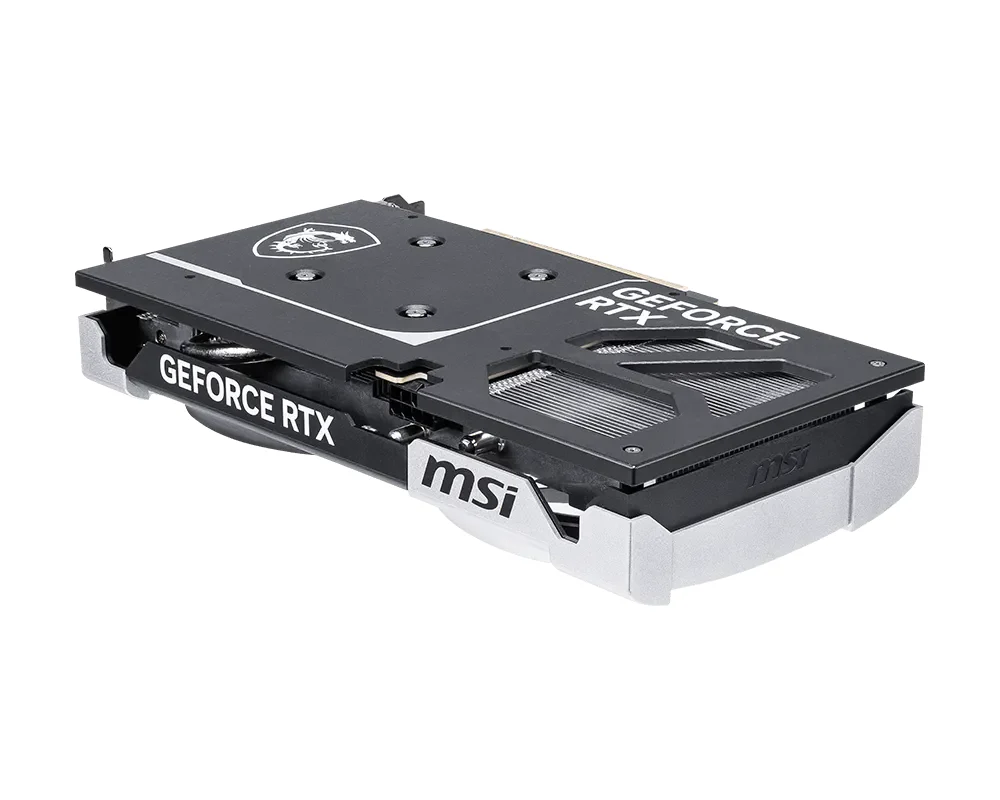

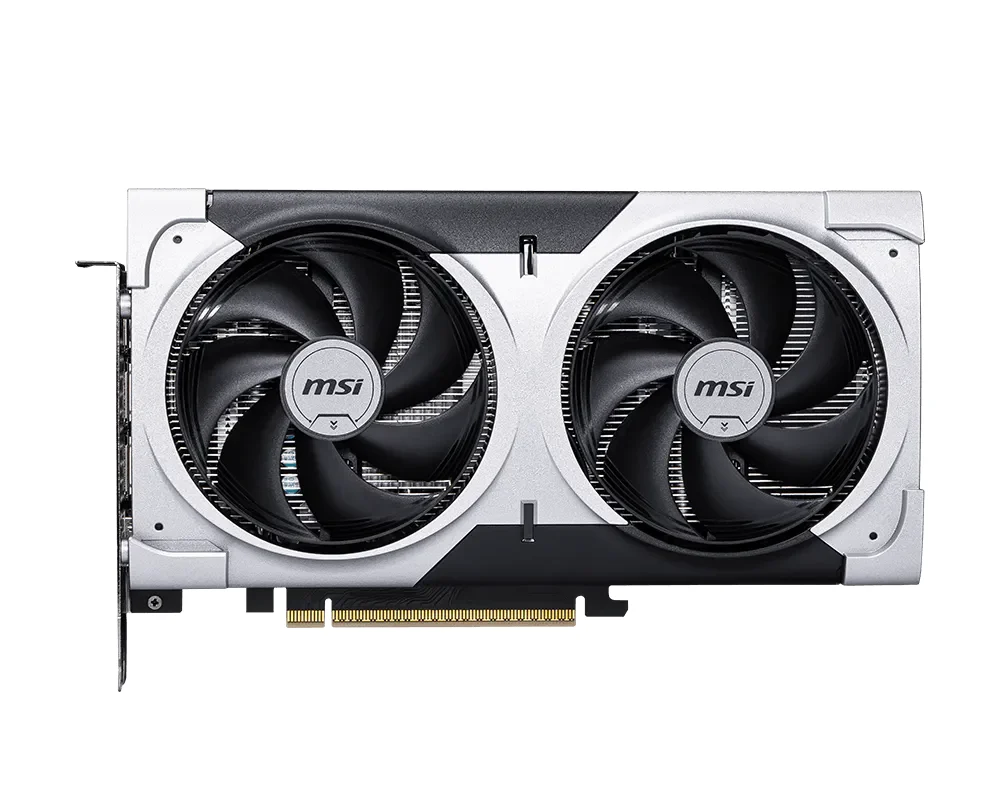

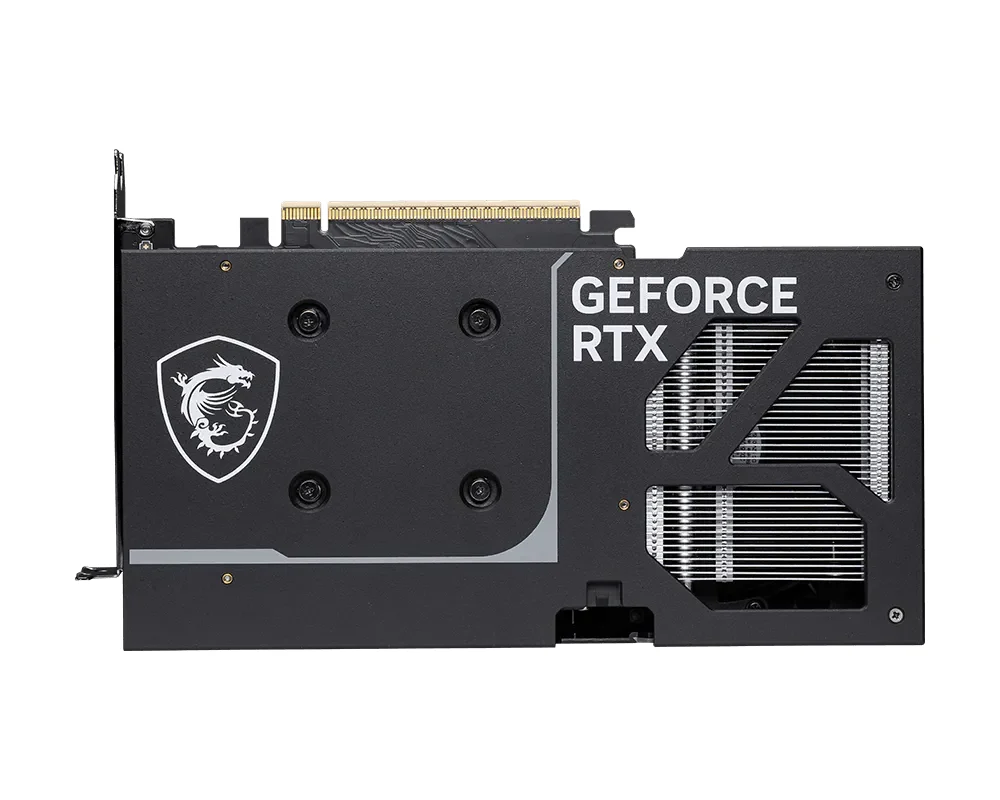

• Compact 227 × 126 × 41 mm dual-fan card that suits small and mid-tower cases.
• NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores, DLSS 4 support and 28 Gbps GDDR7.
• Factory boost of 2602 MHz (2617 MHz Extreme Performance via MSI Center).

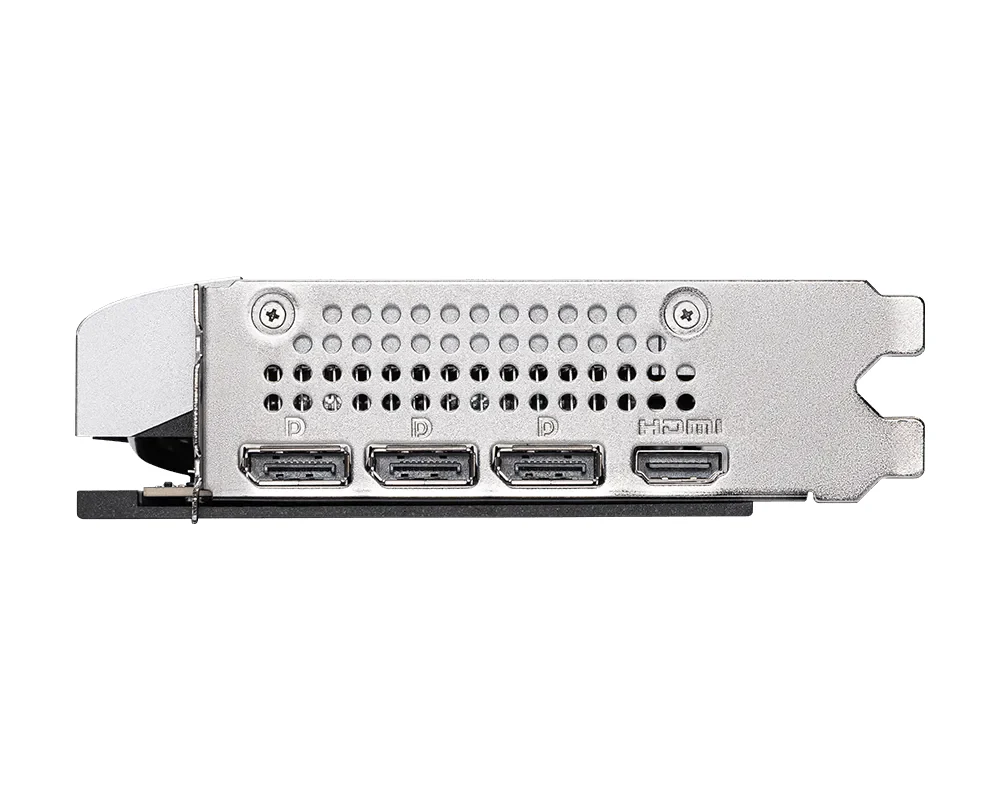

• Four display outputs: three DisplayPort 2.1b and one HDMI 2.1b.

Fit and compatibility checks

Key specifications

In the box

• MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS graphics card
• Manufacturer documentation

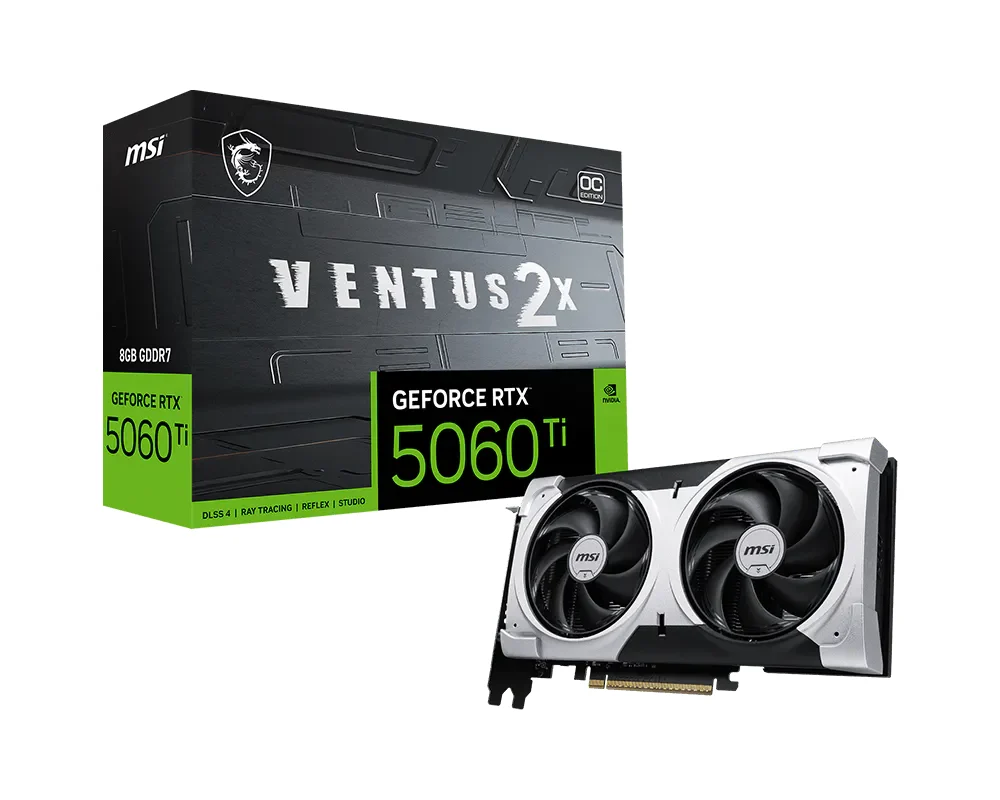

• Manufacturer retail packaging

Not included

• Power supply or power cables
• Display cables
• Games or software bundles unless stated by the manufacturer

Dispatch, warranty and packing

Dispatch in 2–4 business days. Displayed availability is not a reservation, and transit time is separate from dispatch.

Warranty: 36-month manufacturer warranty, proof of purchase and manufacturer terms apply. Statutory rights are unaffected.

Shipping parcel used for delivery quotes: about 45 × 30 × 20 cm and 2.5 kg. These are protective packing estimates, not product dimensions.

Frequently asked questions

How much video memory does this card have?

This model has 8 GB of GDDR7. It is the 8 GB version of the RTX 5060 Ti VENTUS 2X OC PLUS, not the 16 GB variant.

Will it fit a compact case?

The card is 227 × 126 × 41 mm with two fans. Check your case for at least 227 mm of GPU length and about two slots of clearance.

Which power supply is recommended?

MSI lists 180 W power consumption, one 8-pin connector and a 600 W recommended PSU. Check your complete system before choosing a PSU.

Does it run at full speed in a PCIe 4.0 slot?

It fits a x16 slot but uses eight lanes. In a PCIe 4.0 slot it runs at PCIe 4.0 x8; on PCIe 3.0 boards bandwidth is lower.

Which display outputs are available?

Three DisplayPort 2.1b outputs and one HDMI 2.1b output, with support for up to four displays.

Is 8 GB enough for local AI work?

It is suitable for smaller models and image generation at modest sizes. For larger language models, a 16 GB card gives more headroom.

Manufacturer reference: MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS specifications.
