ASRock B850M-X WiFi R2.0 AM5 Micro-ATX Motherboard
SKU: B850M-X-WIFI-R2.0
- TypeMotherboard
- SocketAM5
- ChipsetB850
- Form factorMicro-ATX
€111.87
(excl.VAT)Guaranteed Safe Checkout
Ships in 24h
Ships from Ireland & LatviaNo customs in the EU
Tracked deliveryTo all 27 EU countries
Warranty & supportAfter-sales help
Card, bank, cryptoSecure checkout
Specifications: ASRock B850M-X WiFi R2.0 AM5 Micro-ATX Motherboard
ModelB850M-X WIFI R2.0
SocketAM5
ChipsetB850
Form factorMicro-ATX
Memory typeDDR5
Description for: ASRock B850M-X WiFi R2.0 AM5 Micro-ATX Motherboard
AM5 B850 / Micro-ATX / Wi-Fi 6E
ASRock B850M-X WiFi R2.0 AM5 Micro-ATX Motherboard
A compact AM5 B850 board for Ryzen 9000, 8000 and 7000 desktop CPUs, with DDR5, 2.5GbE, Wi-Fi 6E, one primary PCIe 5.0 x16 slot and two CPU-connected M.2 sockets.
MPN B850M-X WIFI R2.0 | GTIN-13 4711581490765 | Dispatch within 24 hours
B850M-X WiFi R2.0 is the practical ASRock choice for compact builds: two DIMM slots for a tidy DDR5 setup, modern networking, HDMI and DisplayPort for CPUs with graphics, and enough storage connectivity for a compact workstation or everyday high-speed desktop build.
Socket and chipset
AMD AM5, AMD B850
Memory
2 x DDR5 DIMM, up to 128GB
Expansion
Primary PCIe 5.0 x16 plus chipset x1 and mechanical x16 Gen4 x4
Storage
1 x M.2 Gen5 x4, 1 x M.2 Gen4 x4, 4 x SATA 6Gb/s
Networking
2.5GbE Dragon RTL8125BG, Wi-Fi 6E, Bluetooth 5.2
Packed shipping unit
27 x 30 x 6 cm, 1.33 kg
Where it fits
- Single-GPU AM5 desktop or compact workstation where a PCIe 5.0 graphics slot, DDR5 and 2.5GbE matter more than a large ATX board.
- Fast NVMe build with one Gen5 M.2 drive and one Gen4 M.2 drive, while retaining four SATA ports for additional storage.
- Wi-Fi 6E desk setup with included antenna ports and wired 2.5GbE for low-latency networking when a cable is available.
Compatibility and limits
- Supports AMD Ryzen 9000, 8000 and 7000 Series AM5 desktop processors; feature availability and lane speed can vary by CPU.
- Official ASRock manual says PCIE1 runs Gen5 x16 with Ryzen 9000/7000, Gen4 x8 with Ryzen 8000 Phoenix 1 and Gen4 x4 with Ryzen 8000 Phoenix 2.
- Official ASRock manual lists two DDR5 DIMM slots; use the ASRock memory support list for exact kit validation and EXPO/XMP expectations.
- Wi-Fi 6E 6GHz operation requires Windows 11 support, local regulatory availability and a compatible 6GHz router.
- No RAM kit/QVL guarantee, no multi-GPU promise and no guarantee that a future CPU will work without the appropriate BIOS.
Specifications
| Form factor | Micro ATX |
|---|---|
| Socket | AMD Socket AM5 |
| Chipset | AMD B850 |
| CPU families | AMD Ryzen 9000 / 8000 / 7000 Series desktop processors |
| Memory | 2 x DDR5 DIMM, dual channel, up to 128GB; ECC/non-ECC unbuffered support per official manual |
| Primary expansion | 1 x PCIe 5.0 x16 slot from CPU, with CPU-dependent lane/speed caveats |
| Secondary expansion | 1 x PCIe 4.0 x1 and 1 x PCIe 4.0 mechanical x16 supporting x4 from chipset |
| Storage | 1 x M.2 Gen5 x4 2280, 1 x M.2 Gen4 x4 2260/2280, 4 x SATA3 6Gb/s |
| Networking | Dragon RTL8125BG 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth 5.2 |

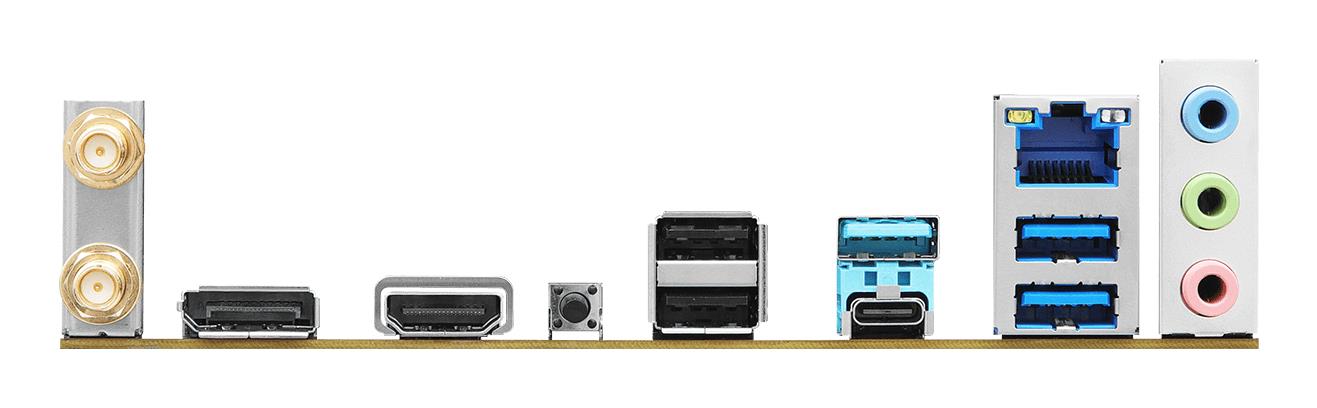

| Display outputs | HDMI 2.1 and DisplayPort 1.4; requires processor graphics |
| Packed shipping unit | 27 x 30 x 6 cm; 1.33 kg (packed shipping) |
What is included

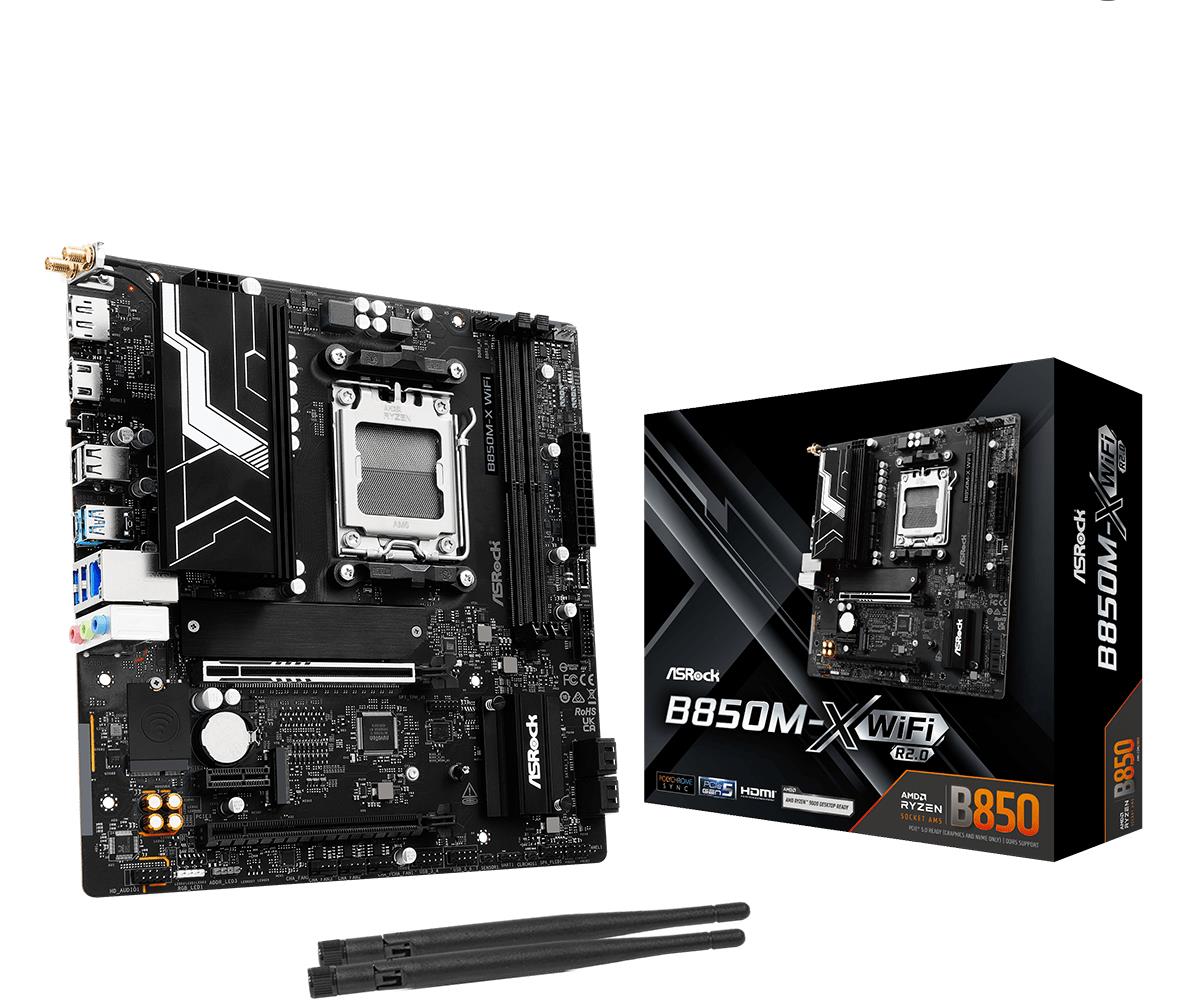

- Motherboard and retail package shown in the product gallery.
- Official ASRock manual package section lists optional SATA cables and two ASRock WiFi 2.4/5/6GHz antennas for the WiFi model; exact carton contents should be checked on receipt.
Not included
- CPU, DDR5 memory, storage drives, operating system, case, cooler and power supply are not included.
MPN and barcode
| Store SKU | B850M-X-WIFI-R2.0 |
|---|---|
| Original manufacturer part number | B850M-X WIFI R2.0 |
| EAN/GTIN | 4711581490765 (GTIN-13) |
FAQ
Is this the R2.0 Wi-Fi variant?
Yes. This is the B850M-X WiFi R2.0 variant, manufacturer part B850M-X WIFI R2.0, EAN/GTIN 4711581490765.
How many M.2 slots are available?
Two storage M.2 sockets: one PCIe Gen5 x4 M2_1 and one PCIe Gen4 x4 M2_2 according to the official ASRock manual.
Can it run multiple graphics cards?
It is best described as a single-primary-GPU board. The lower full-length slot is mechanical x16 but electrically Gen4 x4, so it is not a multi-GPU performance guarantee.
Useful links
ASRock B850M-X WiFi R2.0 product page | ASRock manual PDF | Mineshop Components | Mineshop AI Workstation parts
Availability is not a stock reservation. Transit time is separate from dispatch.
