Bitmain Antminer S23e Hydro 2U 865 TH/s

Bitmain Antminer S23e Hydro 2U (865 TH/s) – 10 J/TH Water-Cooled Rack Bitcoin Miner (Pre-order)

Pre-order: November 2026 batch · 865 TH/s in one 2U server

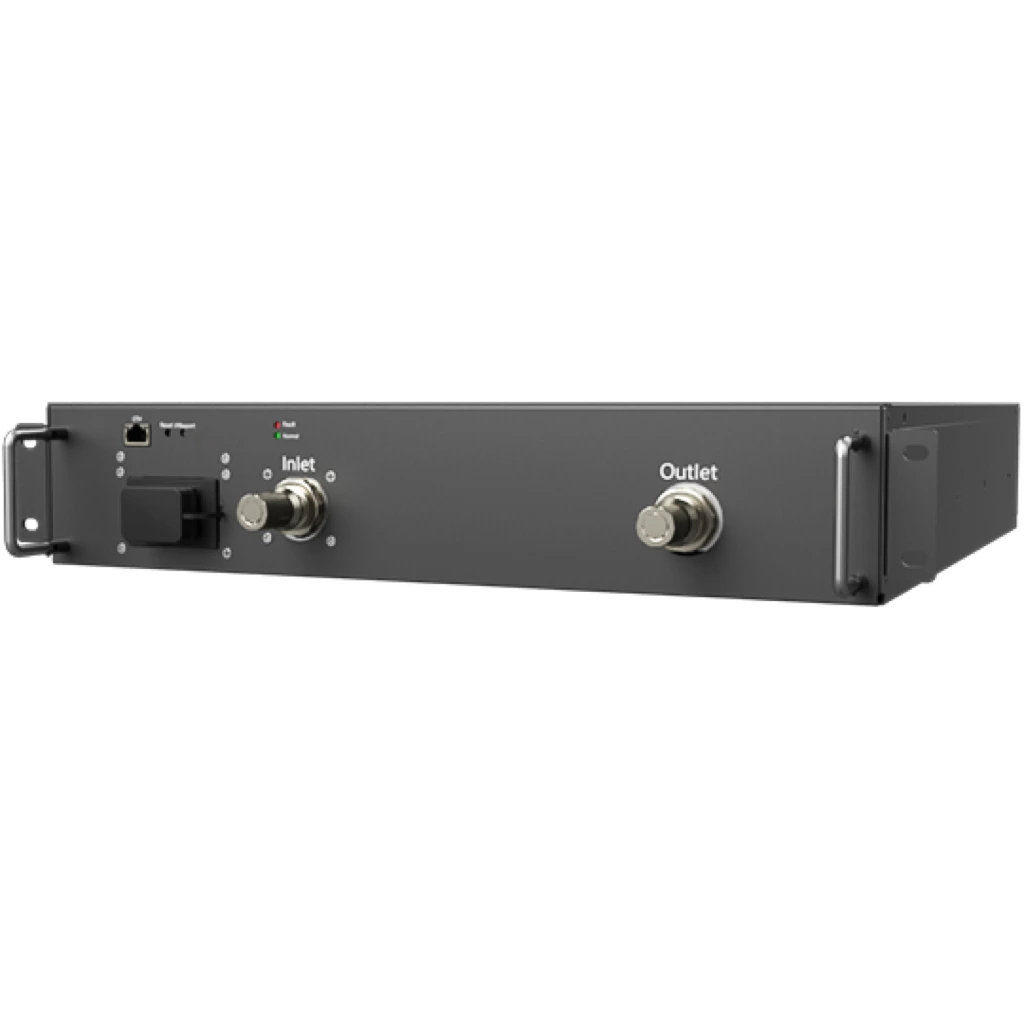

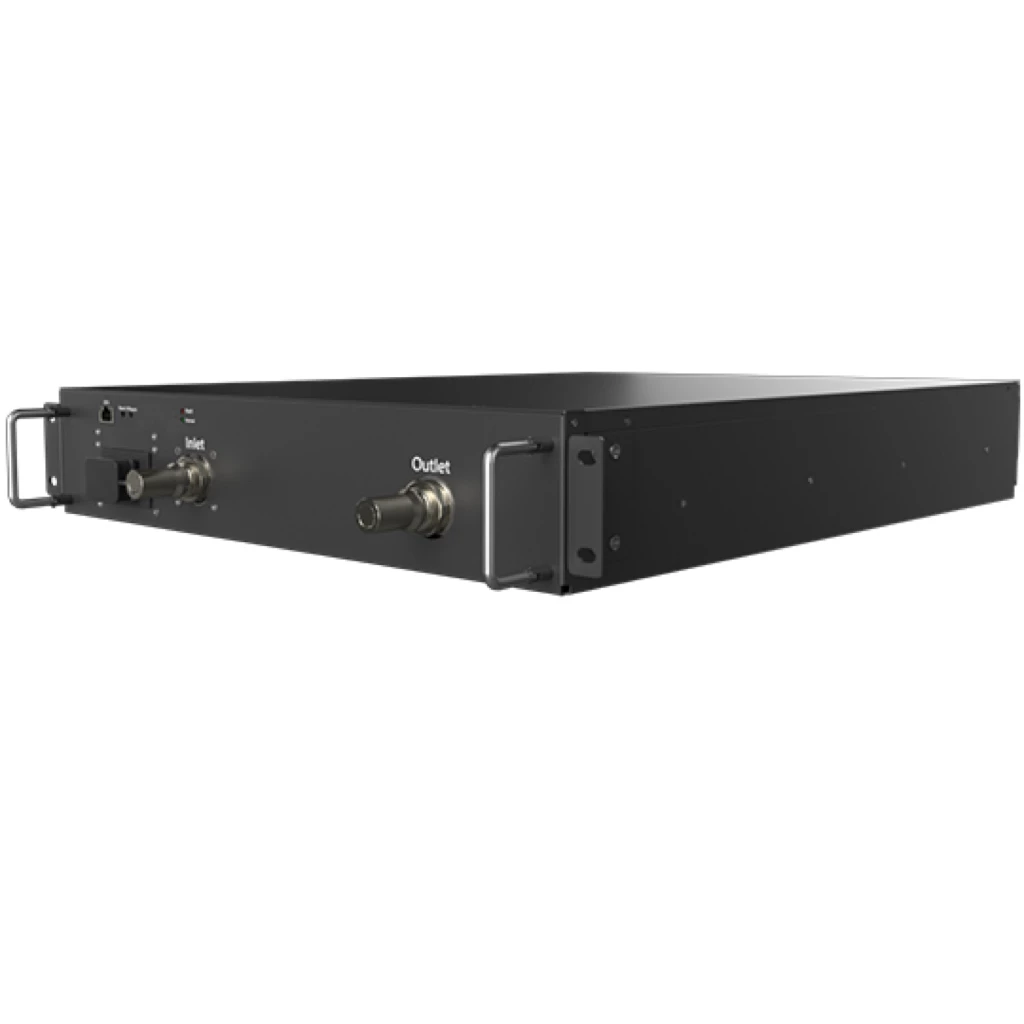

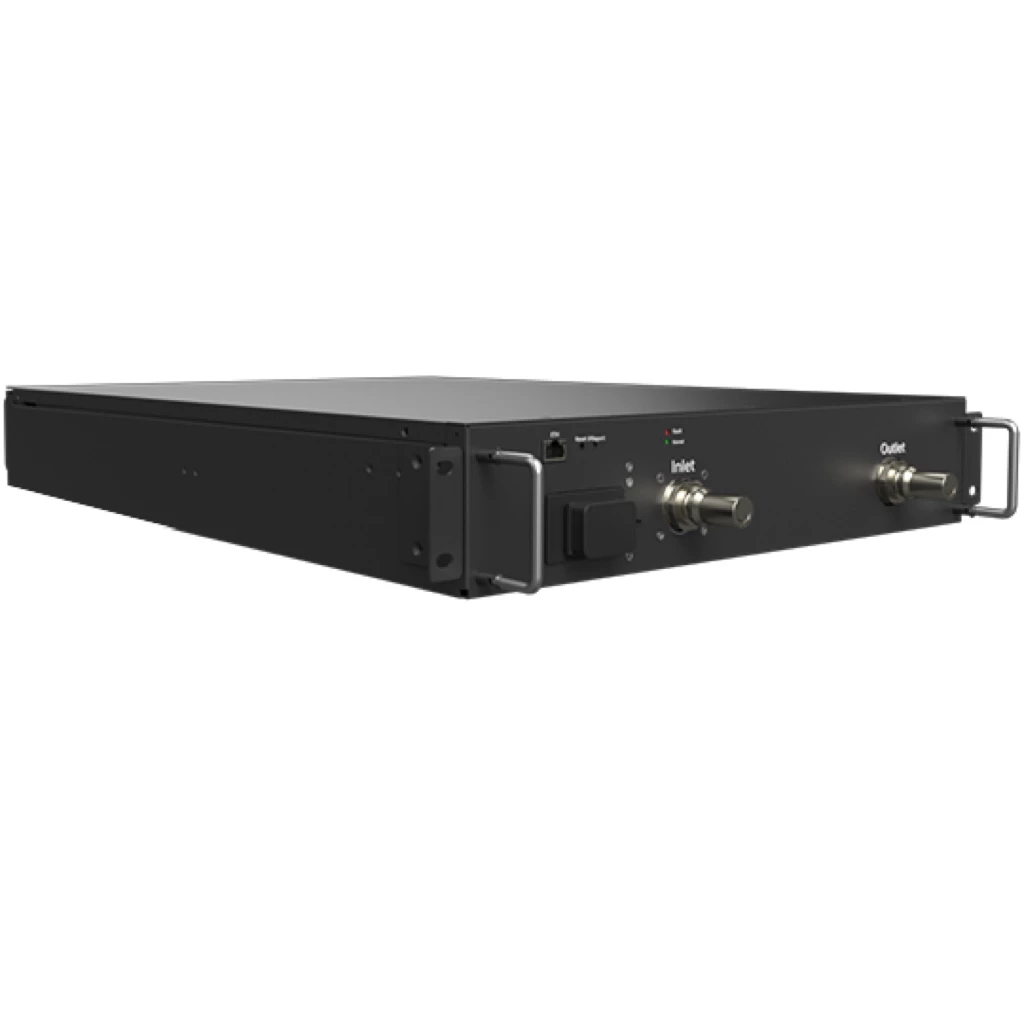

The Bitmain Antminer S23e Hydro 2U (S23e U2H) is a water-cooled SHA-256 ASIC miner built as a 2U server for 19-inch racks. It delivers 865 TH/s at 8650 W, an efficiency of 10 J/TH at 35 °C inlet coolant, so a single rack unit replaces several standard miners.

The S23e U2H is designed for hydro mining containers such as Bitmain's Antspace HW7, which holds 242 of these servers. It runs on 3-phase power with a wide 342–528 V input range, connects over standard Ethernet and mines Bitcoin (BTC), Bitcoin Cash (BCH) and Bitcoin SV (BSV) on any SHA-256 pool.

Technical Specifications

Typical values from Bitmain at 35 °C inlet coolant temperature. Actual hashrate can vary by ±3% and power by ±5%.

Physical Design

Operating Requirements

Store the server completely dry, with no coolant left inside: residual coolant can cause corrosion and short circuits.

Why Choose the Antminer S23e Hydro 2U?

865 TH/s in one 2U server – high hashrate density for racks and hydro containers
10 J/TH efficiency – less electricity per terahash than the S21 generation
Made for Antspace HW7 – 242 servers per container with liquid cooling and a dry cooling tower
Wide power input – 3-phase 342–528 V, up to 20 A, LP34 power port and Ethernet
Support from Mineshop.eu – warranty, after-sales help and tracked delivery

FAQs

Q: How is the S23e U2H installed?
It is a 2U server for standard 19-inch racks, normally run in a hydro mining container such as Bitmain's Antspace HW7, which holds 242 of these servers, with a liquid cooling loop and a dry cooling tower.

Q: What power supply does it need?
A 3-phase supply rated 380–480 V AC (342–528 V range) at 50–60 Hz, up to 20 A per unit, through the LP34 power port. Plan for 8650 W per miner.

Q: What coolant and flow does it need?
Antifreeze, deionized water or pure water, an inlet temperature of 20–50 °C and a flow of 16.0–20.0 L/min per unit at up to 3.5 bar, through UQD08 connectors.

Q: How efficient is the S23e U2H?
Bitmain rates it at 10 J/TH: 865 TH/s for 8650 W at 35 °C inlet coolant.

Q: Which coins can I mine with it?
Any SHA-256 coin, mainly Bitcoin (BTC), Bitcoin Cash (BCH) and Bitcoin SV (BSV), on the mining pool of your choice.

Q: When will it ship?
This is a pre-order for the November 2026 batch. The planned batch month is shown on this page, and our team confirms the dispatch date after payment. Every order ships fully tracked.

Rack-Density Hashrate for Hydro Containers

The Antminer S23e Hydro 2U packs 865 TH/s at 10 J/TH into a single 2U water-cooled server. Reserve units from the November 2026 batch to build dense, efficient hydro mining capacity.
