MSI MPG X870I EDGE TI EVO WIFI AM5 Mini-ITX Motherboard
SKU: MPG-X870I-EDGE-TI-EVO-WIFI
- TypeMotherboard
- SocketAM5
- ChipsetX870
- Form factorMini-ITX
€421.87
(excl.VAT)Guaranteed Safe Checkout
Tracked deliveryTo all 27 EU countries
Warranty & supportAfter-sales help
Card, bank, cryptoSecure checkout
Specifications: MSI MPG X870I EDGE TI EVO WIFI AM5 Mini-ITX Motherboard
ModelMPG X870I EDGE TI EVO WIFI
SocketAM5
ChipsetX870
Form factorMini-ITX
Memory typeDDR5
Description for: MSI MPG X870I EDGE TI EVO WIFI AM5 Mini-ITX Motherboard
AM5 X870 / Mini-ITX / Wi-Fi 7
MSI MPG X870I EDGE TI EVO WIFI AM5 Mini-ITX Motherboard
A high-spec mini-ITX AM5 X870 board with two DDR5 DIMM slots, one PCIe 5.0 x16 slot, Wi-Fi 7, 5GbE, USB4 and three M.2 connectors as specified by MSI.
MPN MPG X870I EDGE TI EVO WIFI | GTIN-13 4711377401463 | Dispatch within 24 hours
MPG X870I EDGE TI EVO WIFI is the compact premium board for compact builds. It suits dense AM5 builds that still need fast networking, USB4 and multiple NVMe positions, while keeping the realistic limits of a single PCIe expansion slot and mini-ITX layout clear.
Socket and chipset
AMD AM5, AMD X870
Memory
2 x DDR5 DIMM, up to 256GB
Expansion
1 x PCIe 5.0 x16 slot
Storage
3 x M.2: 1 Gen5 x4 plus 2 Gen4 x4, one via 5-in-1 Xpander
Networking
Realtek 5GbE, Wi-Fi 7, Bluetooth 5.4
Packed shipping unit
22.5 x 27 x 6 cm, 1.39 kg
Where it fits
- Premium single-GPU mini-ITX AM5 build where compact size, Wi-Fi 7, 5GbE and USB4 are more important than extra PCIe card slots.
- Small workstation or creator system with multiple NVMe drives, while respecting the Xpander-card layout for the extra M.2/SATA connectivity.
- Clean high-end desktop with modern rear I/O, fast external device support and AMD Ryzen 9000/8000/7000 processor compatibility.
Compatibility and limits
- Official MSI datasheet lists support for AMD Ryzen 9000, 8000 and 7000 Series AM5 desktop processors; BIOS level can affect newer CPU support.
- Official MSI datasheet lists one PCIe 5.0 x16 slot, not multiple expansion slots; plan this as a single-card mini-ITX board.
- Official MSI datasheet lists three M.2 connectors: one Gen5 x4 and two Gen4 x4, with one Gen4 connector via the 5-in-1 Xpander Card.
- DDR5 speeds and 256GB capacity depend on CPU, BIOS and memory kit validation; use MSI QVL before promising a specific kit or EXPO/XMP result.
- No RAM kit/QVL guarantee, no multi-GPU promise and no guarantee that a future CPU will work without the appropriate BIOS.
Specifications
| Form factor | Mini ITX |
|---|---|
| Socket | AMD Socket AM5 |
| Chipset | AMD X870 |
| CPU families | AMD Ryzen 9000 / 8000 / 7000 Series desktop processors |
| Memory | 2 x DDR5 DIMM, dual channel; maximum supported memory 256GB |
| Expansion | 1 x PCIe 5.0 x16 slot |
| Storage | 1 x M.2 Gen5 x4 128Gbps; 2 x M.2 Gen4 x4 64Gbps, one via 5-in-1 Xpander Card; 2 x SATA 6Gb/s via Xpander |
| USB | 2 x USB 40Gbps Type-C/USB4 plus additional USB per MSI datasheet |
| Networking | Realtek 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4 |
| Display outputs | HDMI 2.1 and USB4 Type-C display outputs; processor graphics required |
| Packed shipping unit | 22.5 x 27 x 6 cm; 1.39 kg (packed shipping) |
What is included

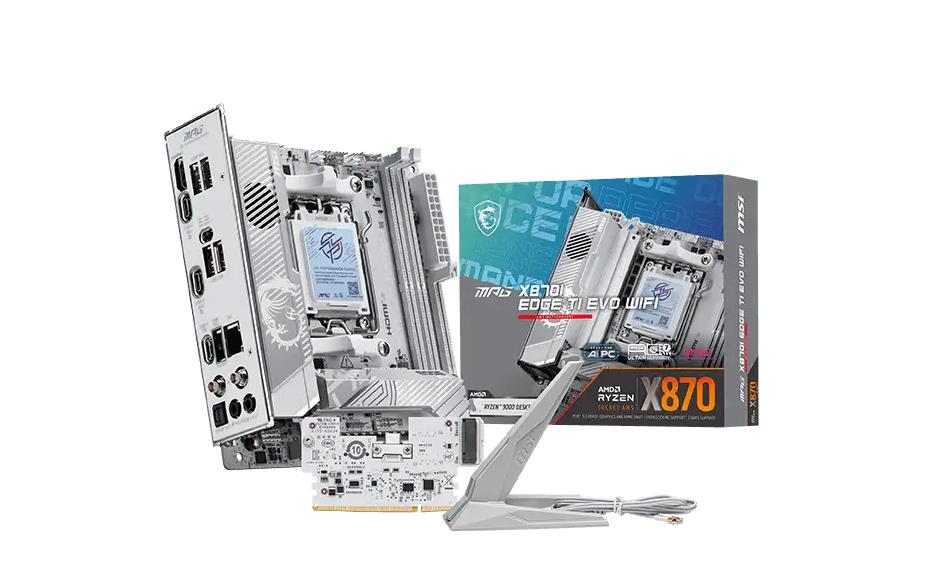

- Motherboard retail package, antenna/accessory set and 5-in-1 Xpander-related connectivity shown in the product gallery and described by MSI. Check sealed contents on receipt for regional bundle variation.
Not included
- CPU, DDR5 memory, storage drives, operating system, case, cooler and power supply are not included.
MPN and barcode
| Store SKU | MPG-X870I-EDGE-TI-EVO-WIFI |
|---|---|
| Original manufacturer part number | MPG X870I EDGE TI EVO WIFI |
| EAN/GTIN | 4711377401463 (GTIN-13) |
FAQ
How many M.2 connectors does this board have?
Three according to the official MSI datasheet: one PCIe Gen5 x4 and two PCIe Gen4 x4 connectors, with one Gen4 connector via the 5-in-1 Xpander Card.
Is it a multi-GPU board?
No. It is a mini-ITX board with one PCIe 5.0 x16 expansion slot.
Does Wi-Fi 7 mean every network will run at Wi-Fi 7 speeds?
No. Wi-Fi 7 needs a compatible router, client environment, drivers, regional support and favourable radio conditions.
Useful links
MSI MPG X870I EDGE TI EVO WIFI product page | MSI datasheet PDF | Mineshop Components | Mineshop AI Workstation parts
Availability is not a stock reservation. Transit time is separate from dispatch.
