GIGABYTE GeForce RTX 5070 Ti GAMING OC 16GB rev. 1.0

Exact specifications

Suitability and compatibility

• Check 342mm length, 142mm width, 70mm thickness and power-cable bend room against the actual case, radiator and adjacent slots.
• Use the PSU manufacturer’s own approved cable; connector type and recommended wattage do not certify a full build.
• Software support, drivers, precision, offloading and application memory use determine local-AI suitability. No model-size or throughput benchmark is promised.
• All cards here have 16GB VRAM. Cooler, colour, clock and compute-tier changes do not increase memory capacity or automatically pool memory across GPUs.
• The exact MPN/revision is retained. Confirm the supplied carton revision if revision-specific fit or accessories matter.

Included and excluded items

1 × exact graphics card. Additional cables, holders or adapters are not promised unless confirmed for the supplied exact package. CPU, motherboard, PSU, display cable and case are separate.

Optional products, not a required bundle

Higher-tier / premium alternatives: Gigabyte RTX 5080 Windforce OC SFF – 16GB GDDR7 GPU.

Optional build companions: GIGABYTE UD1000GM PG5 V2 1000W – ATX 3.1 80 PLUS Gold Modular PSU, Club 3D CAC-1093 DisplayPort 2.1 DP54 3m.

Other actual alternatives: Gigabyte RTX 5070 Ti Windforce OC SFF – 16GB GDDR7 GPU, MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC.

Recommendations are optional, not a mandatory bundle or a fit/power certificate. PSU and display-cable choices must match the complete build; DP54 does not promise DP80 bandwidth. Cooler alternatives have different height/radiator requirements. No component here is a whole workstation.

Dispatch and warranty

Dispatch within 24 hours. Destination transit time is separate.

Confirm applicable seller/manufacturer warranty terms for the supplied exact part before ordering. Packaging and revision-specific checks remain important.

Frequently asked questions

How much VRAM does this exact RTX 5070 Ti have?

It has 16GB of dedicated GDDR7. This is not a memory-capacity upgrade over another 16GB card.

What clearance does this RTX 5070 Ti GAMING OC 16GB rev. 1.0 need?

The documented card body is 342 × 142 × 70 mm. Allow additional cable-bend and airflow space; case maximums alone are not a simultaneous-fit guarantee.

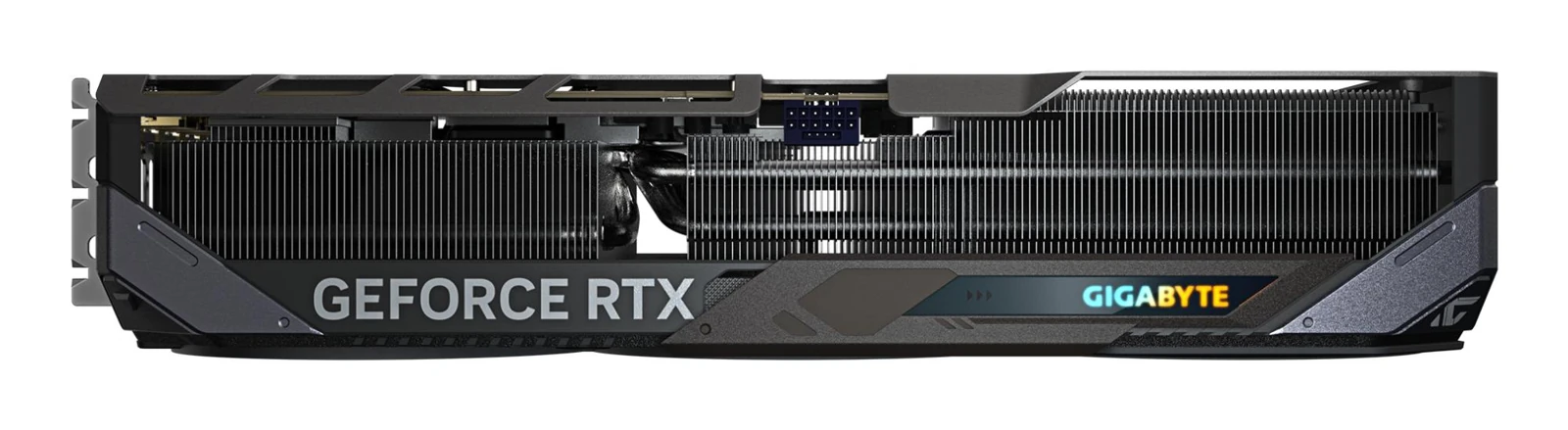

Which GPU power connector is on this card?

One 16-pin input. Use a qualified power-supply cable and fully seat both ends; the PSU is not bundled.

Is 750 W a guaranteed full-system power budget?

No. It is the listed system-PSU recommendation. Check CPU demand, other hardware, peak loads and cabling. The stated card power is 300 W.

Is this suitable for local AI or multiple GPUs?

It is an actively cooled desktop GPU, but verify software/driver support, workload memory, electrical lanes, slot spacing and cooling. Multi-GPU memory is not automatically pooled and no benchmark is claimed.

When is dispatch expected?

Dispatch within 24 hours. Stock is not reserved; destination transit time is separate.

Specifications and build planning

Exact manufacturer reference · Plan a PC configuration

Technical facts are exact-part evidence, not measured AI benchmarks or a certified complete build. Use the configurator as a planning aid and review unresolved mechanical, power and software requirements.
