Heavy-Duty Single-Phase PDU 80a

Name: Heavy-Duty Single-Phase PDU 80a
Brand: Mineshop
SKU: 80A-SINGLEP-PDU
Price: 199.87 EUR
Availability: InStock

SKU: 80A-SINGLEP-PDU

US$224.50

(excl.VAT)

Guaranteed Safe Checkout

Ships in 24h 1 left

Order confirmed within 24h

Ships from Ireland & LatviaNo customs in the EU
Tracked deliveryTo all 27 EU countries
Warranty & supportAfter-sales help
Card, bank, cryptoSecure checkout

Specifications: Heavy-Duty Single-Phase PDU 80a

Coin

Model4-Port C19 Power Distribution

Also Known AsHeavy-Duty Single-Phase PDU

Sizes65x6.8x6.5cm

Consume, kWh20kw max power draw

Voltage220-250v

Temperature-5-40c

Warranty360days

Description for: Heavy-Duty Single-Phase PDU 80a

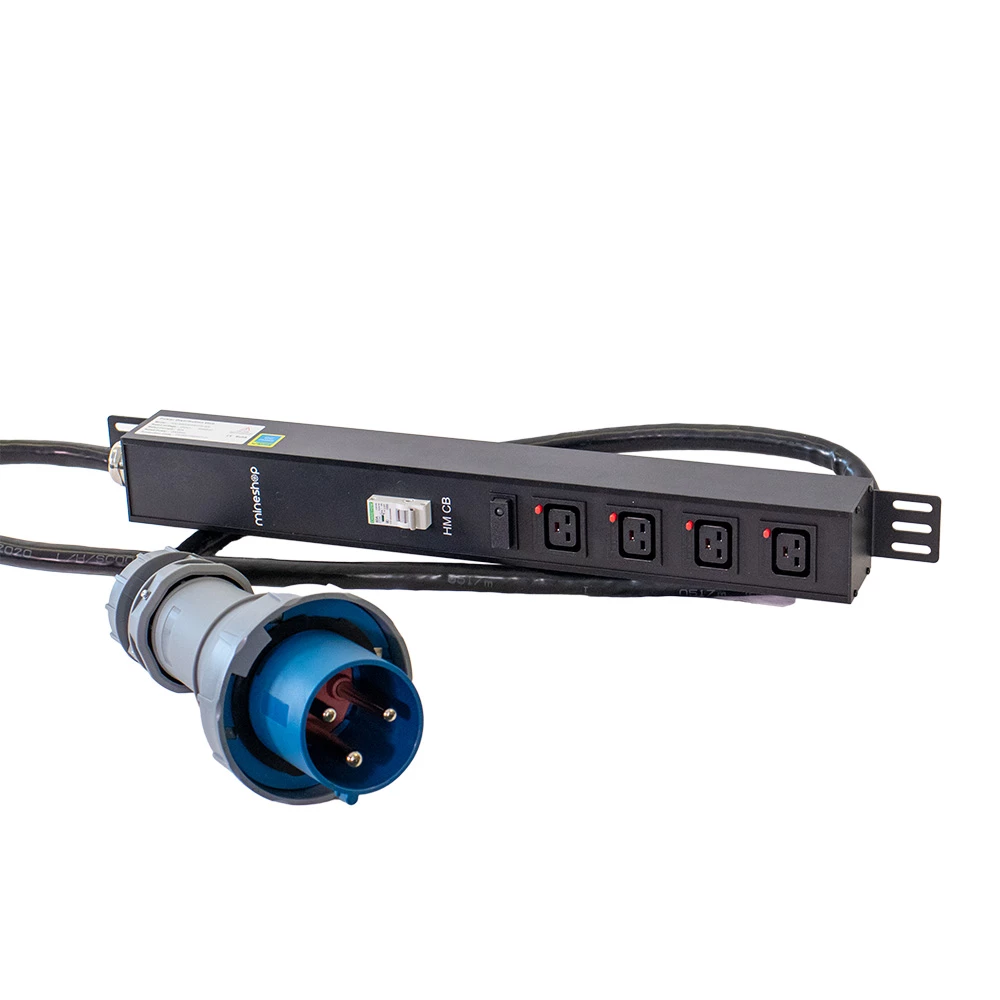

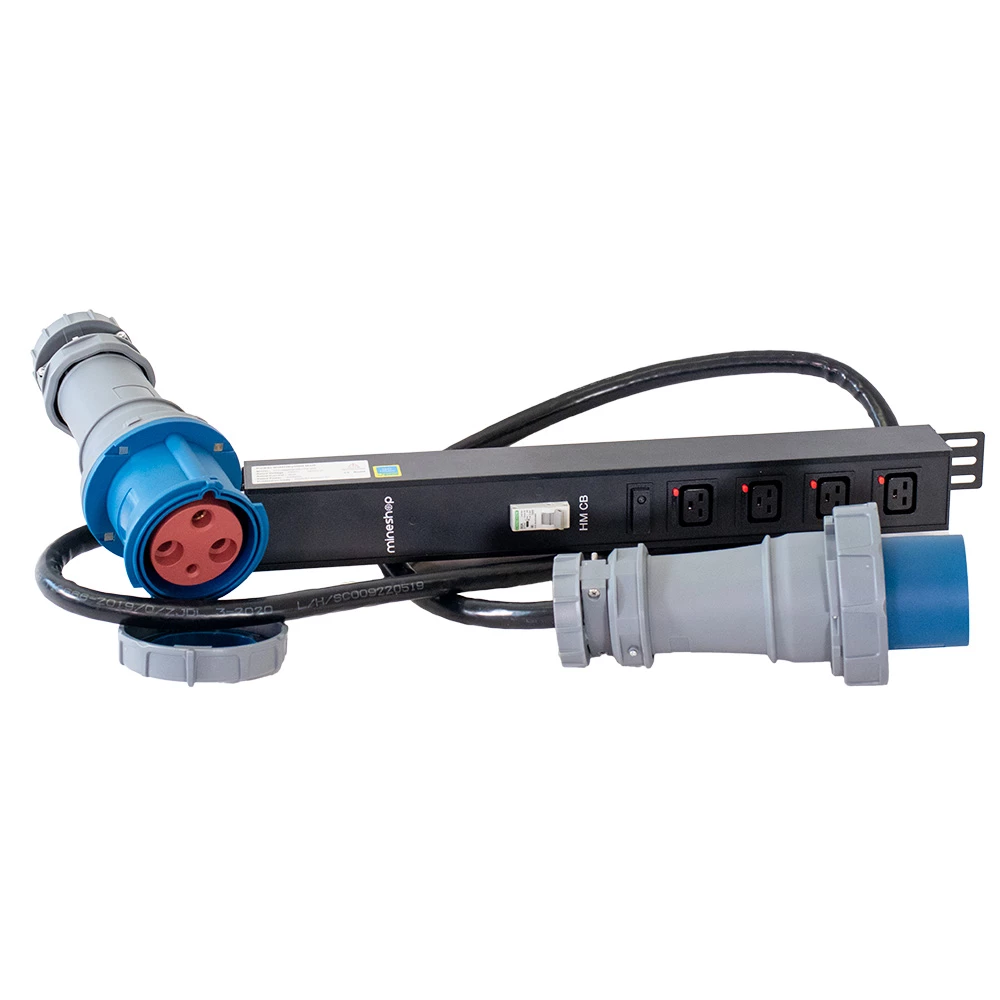

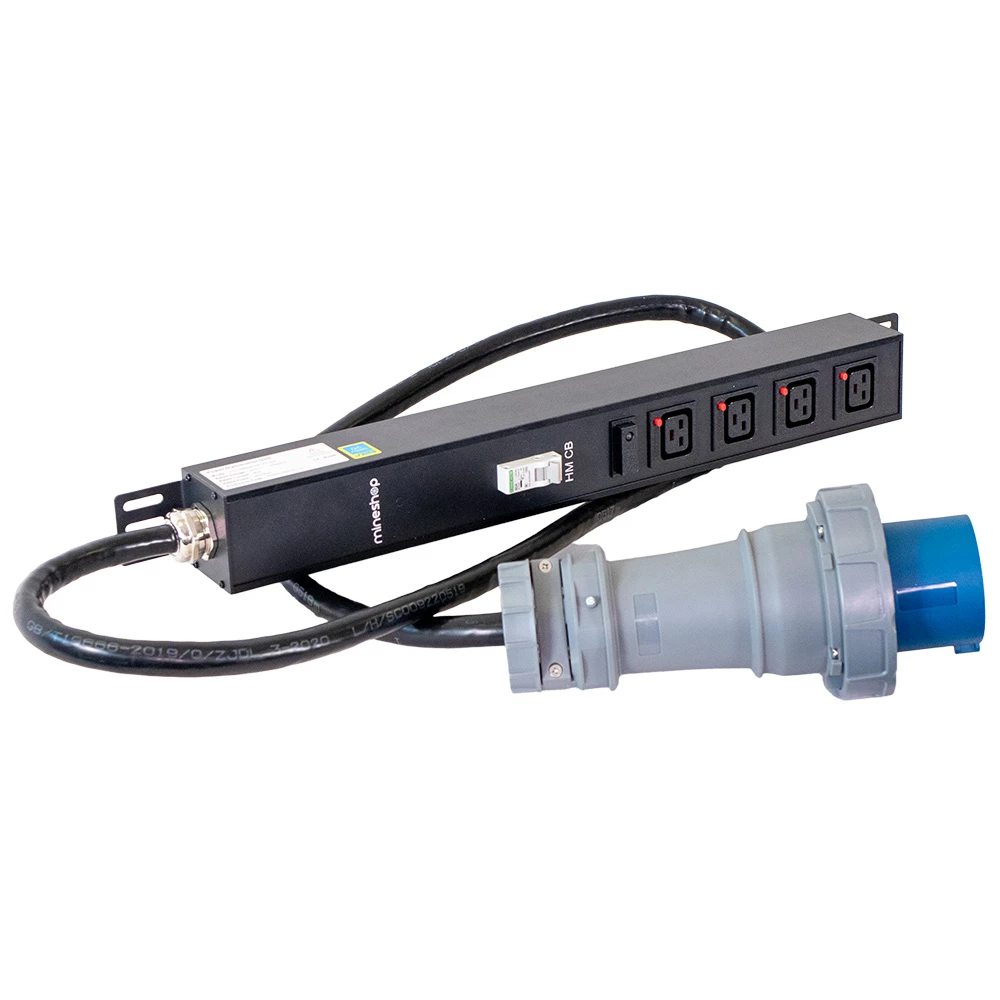

Heavy-Duty Single-Phase PDU – 4-Port C19 Power Distribution for ASIC Miners

Built for serious mining setups, this industrial-grade Single-Phase PDU is equipped with 4 x IEC C19 lockable outlet receptacles, each delivering 20A at 250V. With a total capacity of 80A, it’s designed to support high-power ASIC miners like the Antminer S19, S21, Whatsminer M50/M60, and Avalon A15.

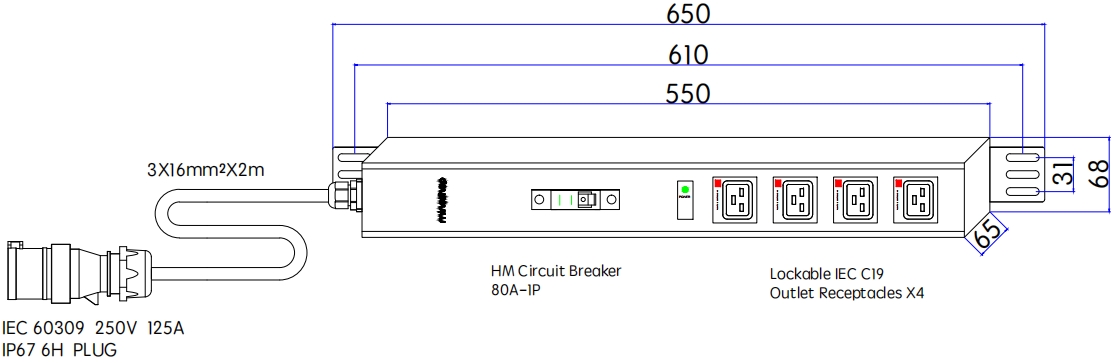

Technical Specifications

Feature	Specification
Model	Single-Phase 4-Port PDU
Input Plug	IEC 60309, 250V, 125A, IP67-rated (6H)
Input Cable	3 x 16mm² (2m)
Breaker	HM Circuit Breaker, 80A - IP Rated
Total Output Ports	4 x Lockable IEC C19 (20A per port)
Total Output Capacity	80A @ 250V = 20 kW max output power
PDU Dimensions	650mm x 68mm x 65mm
Mounting Bracket	31mm depth for secure installation
Cooling Requirement	Passive (based on ambient rack airflow)

ASIC Miner Compatibility

Supports all major high-performance miners, including but not limited to:

Bitmain: Antminer S19 / S19 XP / S21 / S21 Hyd
MicroBT: Whatsminer M30 / M50 / M60 series
Canaan: Avalon A15, A1566 series
Bitdeer A2 and other 220–250V industrial miners

Why Choose This PDU?

IP67-rated Plug: Dustproof & waterproof for rugged environments
Lockable C19 Outlets: Secure power connection with zero disconnection risk
20kW Power Support: Perfect for compact or rack-mounted 4-miner setups
Pre-fitted Breaker: Integrated 80A circuit breaker for protection & reliability
