Basic Antminer T21 PDU Power Distribution unit for Asic miner P33
SKU: T21-P33-63A
US$258.20
(excl.VAT)Guaranteed Safe Checkout
Ships in 24h 1 left
Order confirmed within 24hShips from Ireland & LatviaNo customs in the EU
Tracked deliveryTo all 27 EU countries
Warranty & supportAfter-sales help
Card, bank, cryptoSecure checkout

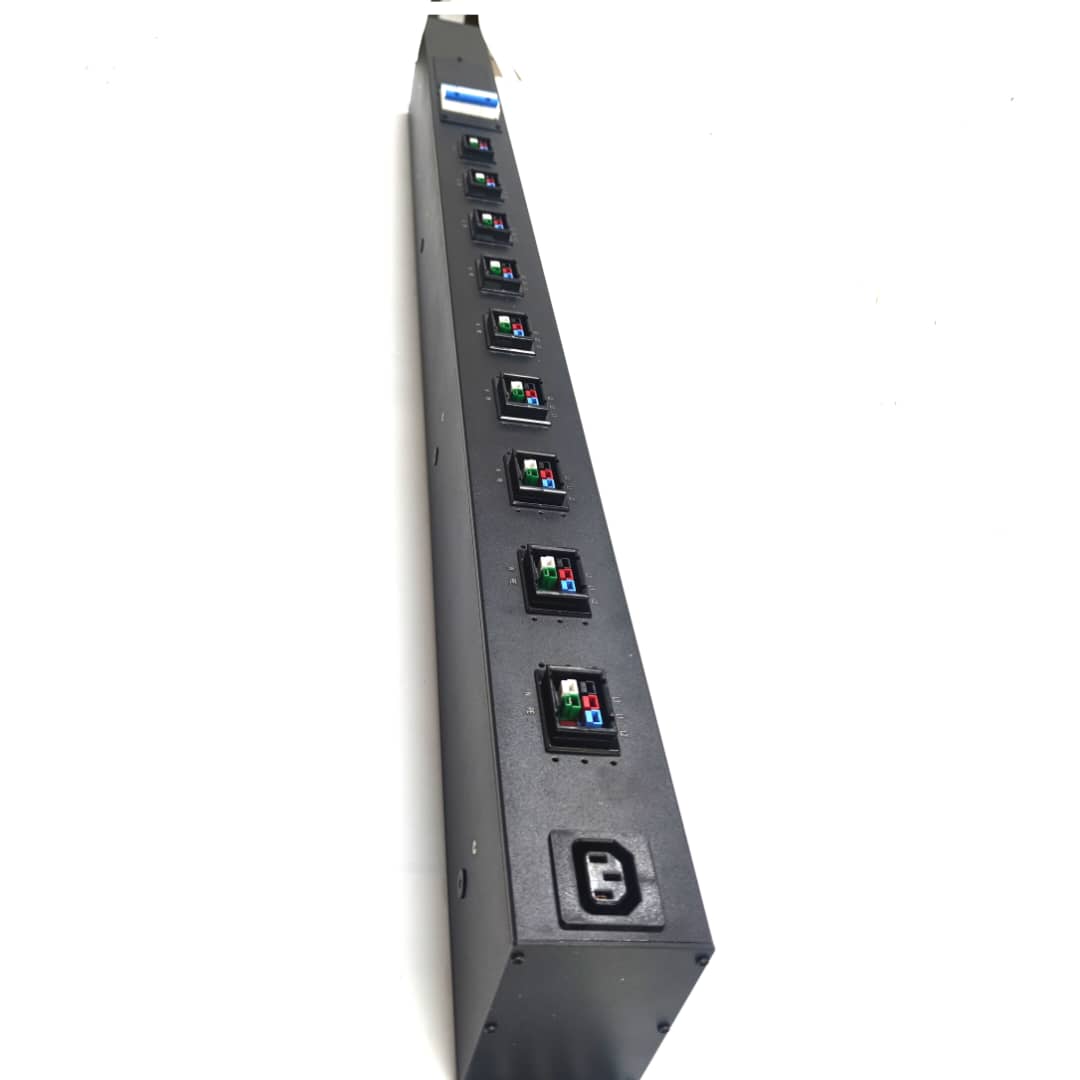

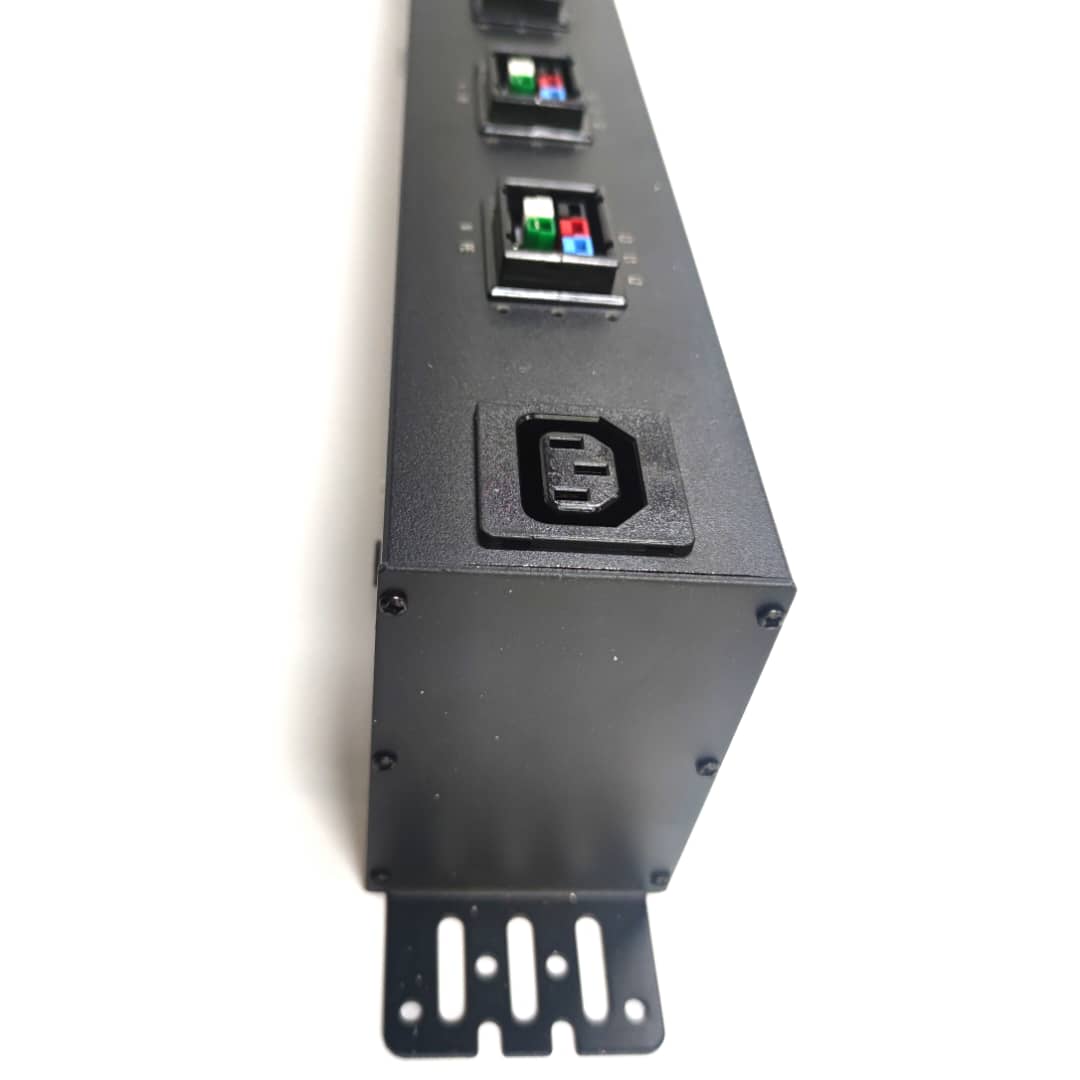

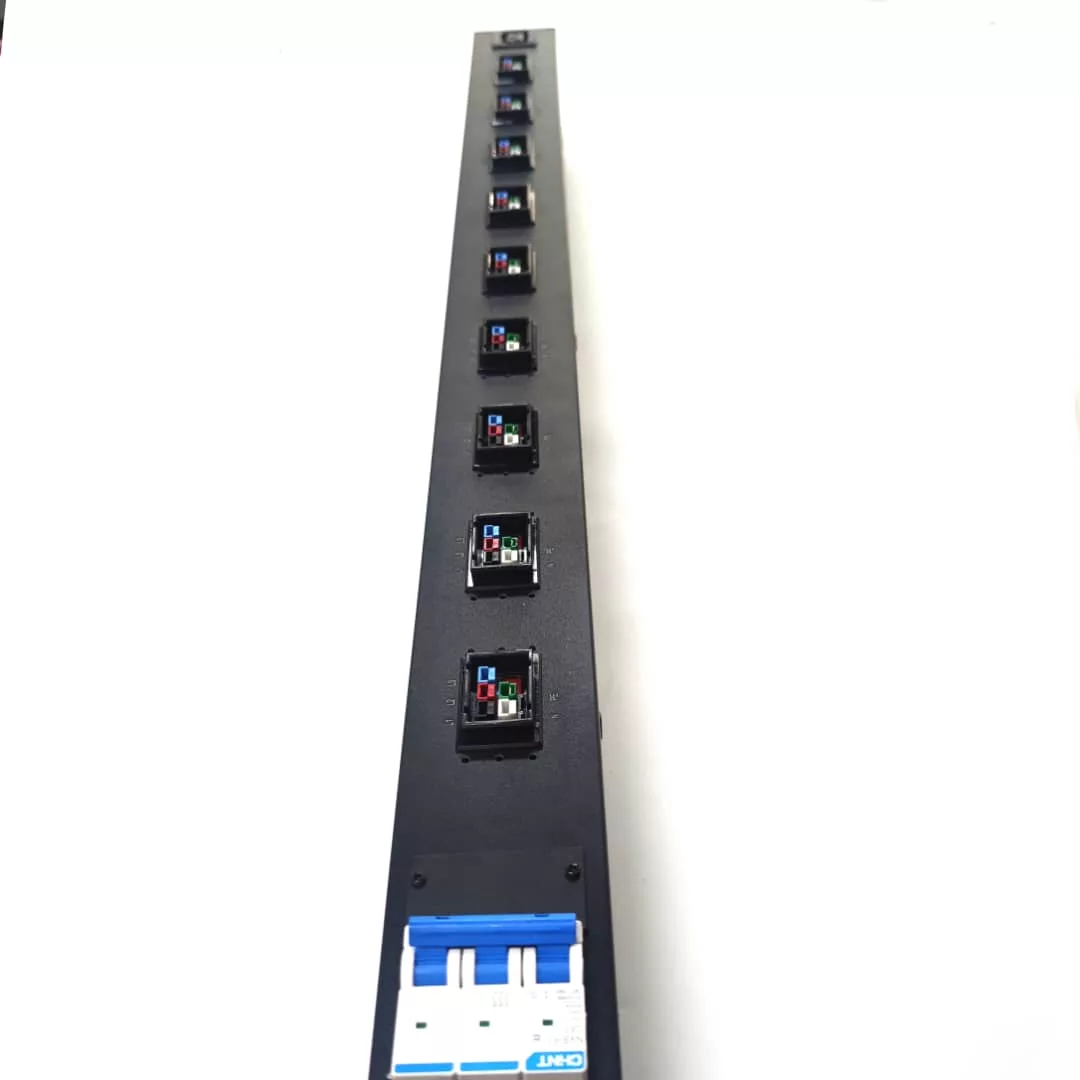

Description for: Basic Antminer T21 PDU Power Distribution unit for Asic miner P33
Antminer T21 PDU Socket – 9-Way 6Pin Anderson + 1 C13 | 3P 63A | 41kW Rated Power
The Antminer T21 PDU Socket is a high-performance industrial-grade power distribution unit (PDU) specifically designed for Antminer T21 and other large-scale ASIC mining rigs. Built for stability, safety, and efficiency, it provides clean and reliable power to multiple miners simultaneously, making it ideal for data centers, mining farms, and industrial mining environments.
Key Specifications
| Parameter | Description |
|---|---|
| Product Name | 9-Way 6Pin Anderson + 1-Way C13 PDU |
| Model | Antminer T21 PDU Socket |
| Structure Material | Sheet Metal (industrial-grade) |
| Connectors | 9 × 6Pin P33 Anderson + 1 × C13 Socket |
| Circuit Breaker | 3P 63A Air Switch (CHNT) |
| Input Voltage | 346–480V AC, 3P + N + PE |
| Input Current | 3-Phase 63A |
| Output Voltage | 9x 3-Phase: 346–480V AC; 1x C13 Single-Phase: 200–277V AC |
| Rated Output Power | 41 kW |
| Altitude Limit | ≤ 2000m |
| Dimensions | Standard rack-mount (customizable per system setup) |
Working Environment
| Condition | Range |
|---|---|
| Operating Temperature | –20°C ~ +40°C |
| Operating Humidity | 5% ~ 90% RH (Non-condensing) |
| Storage Temperature | –40°C ~ +70°C |
| Storage Humidity | 5% ~ 95% RH (Non-condensing) |
Features & Advantages
Stable Multi-Miner Power Distribution
Supports up to 9 ASIC miners simultaneously, ensuring balanced power output and efficient distribution for high-load mining operations.

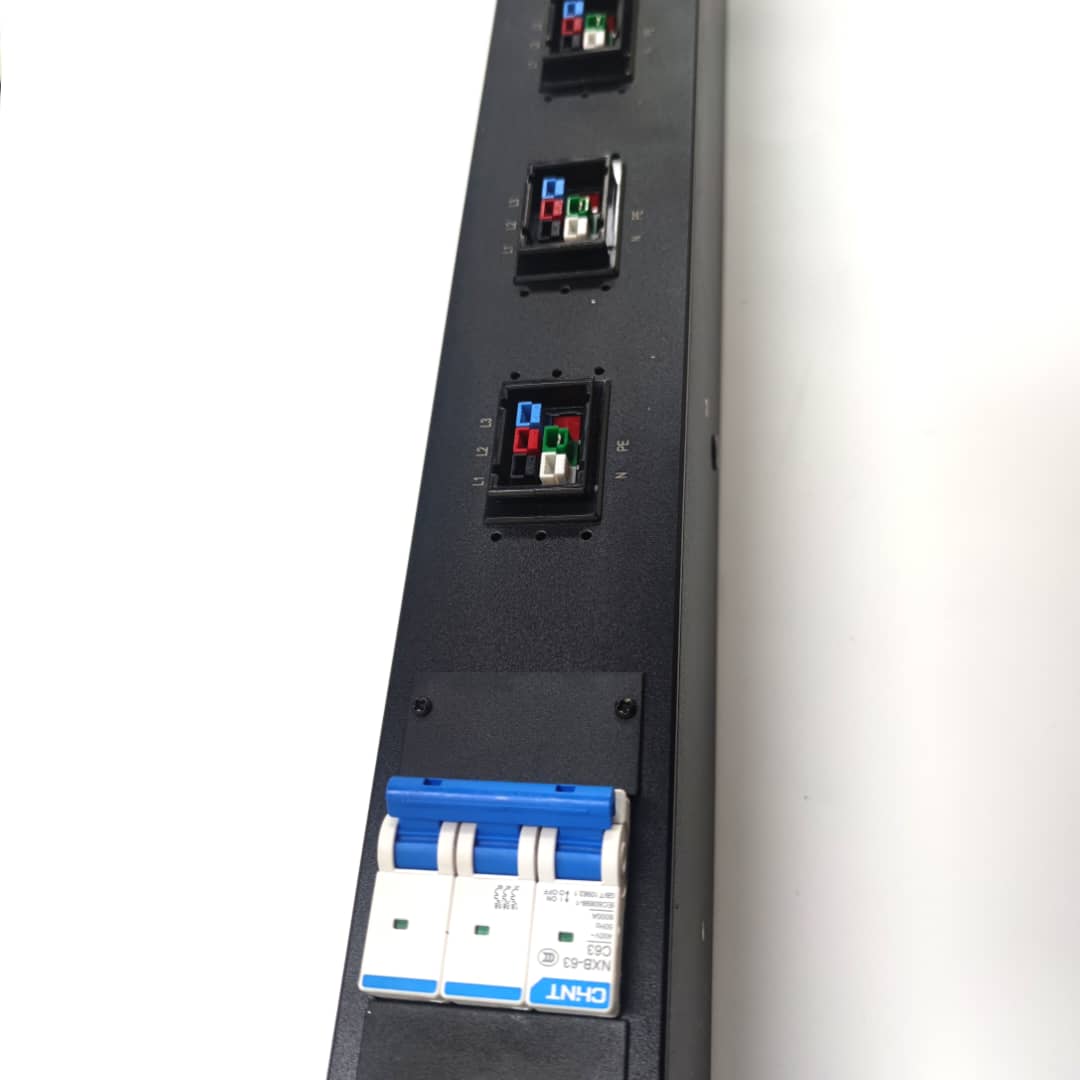

Built-In 3P 63A Air Switch (CHNT)
Integrated three-phase 63A air circuit breaker for overload protection and reliable electrical safety during continuous operation.
Rugged Industrial Build
Constructed from heavy-duty sheet metal, ensuring superior durability and heat resistance in demanding mining environments.
Plug-and-Play Compatibility
Designed for seamless integration with Bitmain Antminer T21 series.
Wide Voltage Support
Supports three-phase 346–480V input and output, compatible with most global industrial power standards.
Applications
-
Antminer T21
-
Industrial ASIC Mining Farms
-
Hydro Cooling Racks
-
Data Center Power Management
-
Crypto Mining Containers
What’s Included
-
1 × Antminer T21 PDU Socket Unit (9 × 6Pin Anderson + 1 × C13 Socket)
-
1 × Integrated 3P 63A CHNT Air Switch
-
Junction box prewired for 3P+N+PE input
(Power input cable not included)
Safety & Reliability
Each PDU undergoes rigorous testing to ensure:
-
Stable 3-phase operation
-
Overcurrent and short-circuit protection
-
Reliable grounding and insulation integrity
-
Consistent 41kW rated output performance
