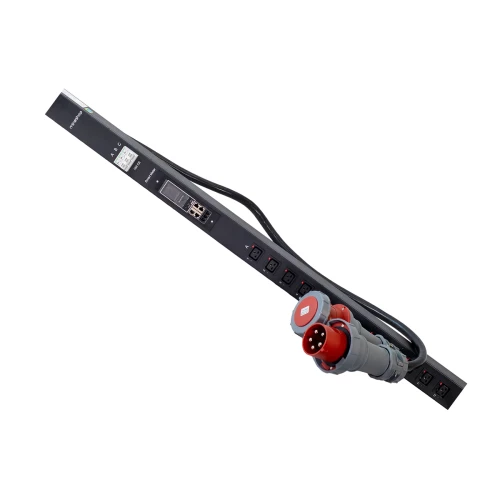

3-Phase 80a Smart Power Distribution Unit (PDU)

3-Phase Smart Power Distribution Unit (PDU) – 12x Locking C19 Sockets

Model: M-PDU
HS Code: 8537109090
Type: Intelligent Remote-Controlled 3-Phase PDU
Form Factor: Rack-Mountable | Black Sheet Metal Housing

Product Overview

Engineered for industrial-grade mining and data center applications, this 3-Phase Smart PDU offers 12x Lockable C19 sockets, each rated at 20A. Designed to meet the high-demand power distribution needs of ASIC miners and server environments, this unit ensures optimal safety, control, and monitoring.

Key Features

• Sockets: 12x IEC Lockable C19 female receptacles

• Rated Current Per Socket: 20A

• Circuit Protection:

  • Each phase is protected with individual 80A HM 3-pole circuit breakers

  • Built-in hot-swappable smart meter for real-time monitoring

• Plug Type: IEC 60309 | 380V | 125A | IP67 6H

• Input Cable: 5x16mm² copper, 2 meters

• Dimensions (mm): 1500 (L) x 100 (W) x 75 (H)

• Mounting: Horizontal rack-mountable with end brackets

• Remote Monitoring:

  • Current, voltage, real-time power usage, and total capacity

  • IP access for cloud-based control

  • Remote ON/OFF switching for individual outlets

Compatibility

Supports latest generation and legacy ASIC miners including:

• Antminer S21, S19 series

• Whatsminer M60/M50 series

• Avalon A15/A14

• Bitdeer A2

• Any equipment with IEC C19 plug support under 20A per unit.
