3-Phase Basic PDU - Power Distribution unit

Name: 3-Phase Basic PDU - Power Distribution unit
Brand: Mineshop
SKU: 3PHASE-BASIC-PDU
Price: 249.87 EUR
Availability: InStock
Rating: 4.2 (5 reviews)

SKU: 3PHASE-BASIC-PDU

5 Reviews

€249.87

(excl.VAT)

5 Reviews

Guaranteed Safe Checkout

Ships in 24h 2 left

Order confirmed within 24h

Ships from Ireland & LatviaNo customs in the EU
Tracked deliveryTo all 27 EU countries
Warranty & supportAfter-sales help
Card, bank, cryptoSecure checkout

Specifications: 3-Phase Basic PDU - Power Distribution unit

ModelM8012HHK3PRT5415

Also Known As3-Phase Basic PDU

Sizes1190x68x65mm

Consume, kWh415V AC

VoltagePDU input 415V AC - socket input 220V

Temperature0-40c

Warranty360days

Description for: 3-Phase Basic PDU - Power Distribution unit

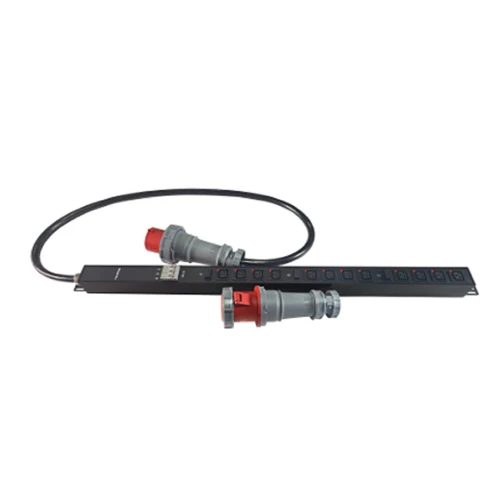

3-Phase Basic PDU – Power Distribution Unit (PDU-M8012HHK3PRT5415)

The 3-Phase Basic PDU is a high-performance power distribution unit designed for industrial, data center, and crypto mining environments. Built with 12 lockable C19 outlets, an 80A 3-pole HM circuit breaker, and a 125A male plug input, this PDU delivers reliable, safe, and efficient 3-phase power distribution.

Featuring remote monitoring and control, users can track current, voltage, power, and capacity in real time while managing each outlet individually. Its black sheet metal housing ensures durability, while certifications (CE, RoHS, ISO 9001, CCC, UL94-V0, Glow Wire, Ball Pressure) guarantee compliance with international safety and performance standards.

Key Features

Model: PDU-M8012HHK3PRT5415
Series: Basic PDU
Input: 3-phase, 415V AC, 125A plug (IEC 60309)
Output: 12 × Lockable C19 outlets
Circuit Protection: 1 × 80A 3-pole HM circuit breaker
Remote Monitoring: Current, voltage, power, and capacity tracking
Remote Control: Independent on/off switching for each outlet
Indicators: Hot-swap indicator lights (3 pcs)
Housing: Black sheet metal for industrial durability
Mounting: Reverse / top-direction entry, 68-50 front and rear panel brackets

Technical Specifications

Specification	Details
Manufacturer	Guangzhou Zituo Technology Co. Ltd.
Product Name	Power Distribution Unit (PDU)
Model	PDU-M8012HHK3PRT5415
Rated Voltage	415V AC
Rated Current	80A
Rated Power	57,502W
Input Connector	IEC 60309, 380V, 125A plug
Output Receptacles	12 × Lockable C19
Circuit Protection	3 × 80A HM circuit breakers (1-pole each)
Monitoring	Remote metering (voltage, current, power, capacity)
Remote Control	Individual outlet management
Dimensions	1190 × 68 × 65 mm (±2mm)
Housing Length	1100 mm
Mounting Length	1160 mm
Power Cord	2m, 5 × 6mm²
Colour	Black
Weight	As per OEM specs
Certificates	CE-EMC, CE-LVD, RoHS, UL94-V0, Glow Wire, Ball Pressure, CCC, ISO 9001

Package Includes

1 × 3-Phase PDU (PDU-M8012HHK3PRT5415)
2m Power Cord with IEC 60309 125A plug
Mounting brackets (front and rear)
User manual & installation guide
Factory test report and certifications

Applications

Data centers and server racks
Crypto mining farms (ASIC miners, GPU rigs)
Industrial automation systems
Enterprise IT infrastructure
High-capacity electrical distribution

Why Choose This PDU?

The 3-Phase Basic PDU PDU-M8012HHK3PRT5415 delivers stable high-power distribution with advanced safety and monitoring features. Perfect for demanding data center and crypto mining applications, it ensures maximum uptime, load protection, and remote management capabilities.
