Immersion Cooling Enclosure System for 6/8 miners Full Set

DCX Immersion Mining Enclosure V3 Complete Kit – Industrial-Grade Crypto Cooling System for High-Efficiency ASIC Mining

Revolutionize Your Mining Farm with Immersion Cooling – Silent, Clean, Efficient, Scalable

As crypto mining becomes more challenging due to rising temperatures, noise, dust, and equipment stress, the DCX Immersion Mining Enclosure V3 offers a game-changing solution. Designed for industrial crypto mining operations, this all-steel immersion cooling system transforms how miners manage heat, power, noise, and equipment lifespan.

With support for up to 8 x Antminer S19 or 12 x Whatsminer M30/M50 units, this scalable, plug-and-play system significantly improves ASIC miner performance and longevity while reducing maintenance, vibration, and environmental stress. Coupled with ThermaSafe™ dielectric fluid and the ICP40 Adaptive Cooling System, it ensures maximum thermal efficiency, safe overclocking, and ultra-quiet operation.

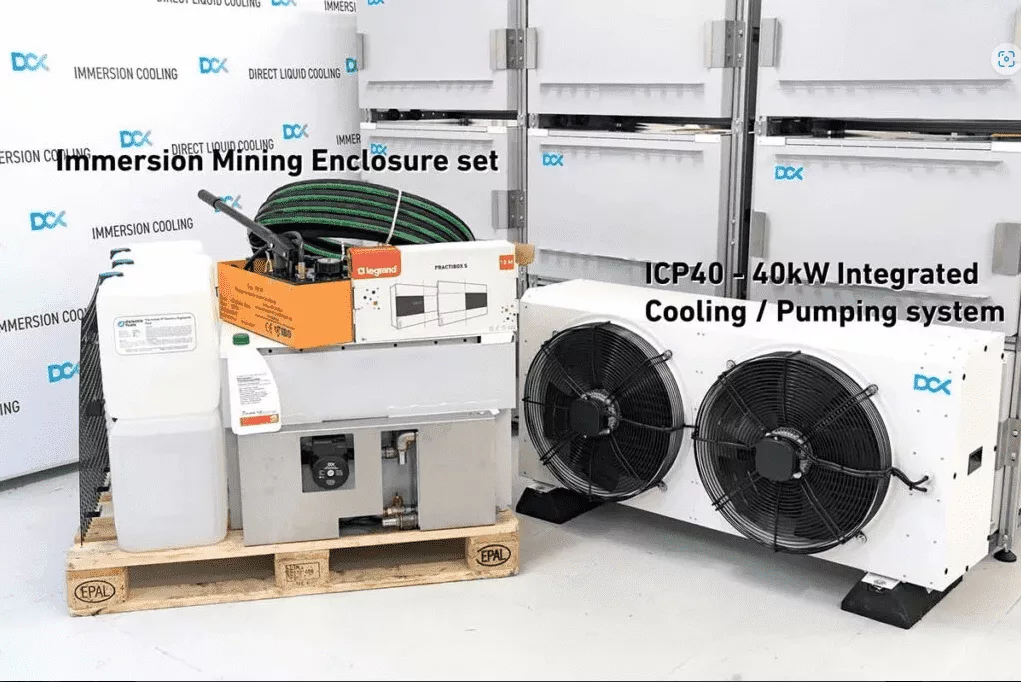

What’s Included in This Complete Package:

• 1 x DCX Immersion Enclosure V3 – Industrial-grade, all-steel, plug-and-mine tank

• 10 x 22L ThermaSafe™ Dielectric Fluid – High-performance, material-safe immersion fluid

• 1 x ICP40 Integrated Pumping & Cooling System – 40-50kW heat rejection capability

• 1 x Dry Cooler Loop Filling Assembly – Manual fluid filling pump for easy setup

Product Specifications – Enclosure System

• Dimensions: 80 cm (W) x 75 cm (D) x 55 cm (H)

• Heat Transfer Capacity: 41 kW

• Material: All-steel construction

• Pump: Dielectric-compatible, 160 lpm / 42 GPM, 8m pressure head

• Dielectric Fluid Volume: 200–230L

• Cooling System Compatibility: ICP40 or water loop

• Max Operating Temp: 68°C (154°F)

• Heat Exchanger: 110 kW Brazed Plate

• Power Distribution & Monitoring: Optional (Software & sensors available)

ICP40 Adaptive Cooling & Pumping Unit

• Optimized for Single Enclosure Immersion Cooling

• Dual 500mm Fans – 58–62 dB(A) standard, 50–55 dB(A) performance fans

• Heat Transfer:

  • 35°C Ambient: 40kW

  • 25°C Ambient: 50kW

• Pump System: 160 lpm / 42 GPM Smart Pump (DN25 1" fittings)

• Power Requirement: 230-240V / 1Ph / 50-60Hz

• Dimensions: 1400 x 460 x 715 mm

• Control: Adaptive fan speed control with temperature sensor

• Dry Weight: 80 kg

Why Choose the DCX Immersion Cooling System?

Higher Efficiency & Performance – Optimize your ASIC miners with better cooling, enabling safe overclocking and extended lifespan.
Quiet Industrial Operation – Drastically reduce noise to below 62 dB, even when running multiple miners.
Dust, Vibration & Heat Protection – Protect miners from humidity, dust, and mechanical wear, which are top causes of hardware failure.
Scalable Architecture – Use standalone or expand into multi-enclosure rack systems for farm-wide deployment.
Plug & Mine Simplicity – Includes everything needed to start operating with minimal setup.

Ideal for:

• Professional ASIC Miners & Crypto Farms

• Data Centers with High Heat Loads

• Miners Looking to Cut Maintenance & Boost ROI

• Operators Seeking Noise-Reduced, High-Density Mining

Warranty & Terms of Sale

• Warranty: 180 Days

• Terms:

  • Payment proof required within 24 hours

  • Reservation valid only after payment is received

  • Unopened items can be returned within 14 days of delivery

Make Your Crypto Mining Farm More Efficient & Reliable Today!

The DCX Immersion Enclosure V3 system is your ultimate answer to the heat, noise, and maintenance challenges of ASIC mining. With best-in-class efficiency, quiet operation, and long-term scalability, this setup empowers professional miners to run at peak performance—safely and sustainably.
