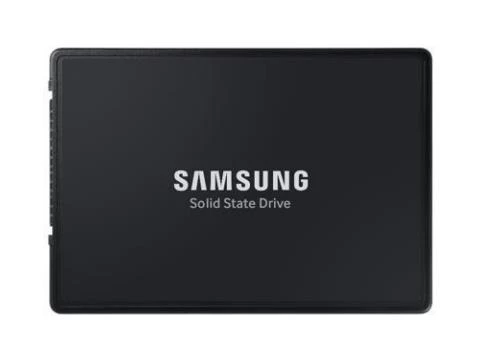

Samsung PM9A3 7.68TB U.2 NVMe Enterprise SSD
SKU: MZQL27T6HBLA-00A07
A 7.68TB Samsung PM9A3 enterprise SSD with a U.2 connection and PCIe 4.0 x4 NVMe interface. Exact part: MZQL27T6HBLA-00A07. Not an M.2 or SATA drive.
- TypeStorage
- Capacity7.68 TB
- InterfacePCI Express 4.0 NVMe
- Form factorU.2
€3,648.87
(excl.VAT)Guaranteed Safe Checkout
Ships in 24h
Ships from Ireland & LatviaNo customs in the EU
Tracked deliveryTo all 27 EU countries
Warranty & supportAfter-sales help
Card, bank, cryptoSecure checkout
Description for: Samsung PM9A3 7.68TB U.2 NVMe Enterprise SSD
Explore this exact-part component at Mineshop, or browse our enterprise storage category to compare options for your platform.
SAMSUNG PM9A3 · ENTERPRISE NVME
Enterprise storage.
Room for your data.
A 7.68TB Samsung PM9A3 enterprise SSD with a U.2 connection and PCIe 4.0 x4 NVMe interface. Exact part: MZQL27T6HBLA-00A07. Not an M.2 or SATA drive.
7.68TB enterprise SSDU.2 · PCIe 4.0 x4NVMe · power-loss protection
Exact component, clear contents
1 × Samsung PM9A3 7.68TB U.2 SSD, manufacturer part MZQL27T6HBLA-00A07.
Cables, PCIe adapters, controllers, mounting accessories and a complete computer are not listed as supplied. Select those parts for your exact server configuration.
Use cases and limits
Consider enterprise NVMe storage for model files, datasets, virtual-machine images and other data in a compatible server or workstation. This model adds capacity and an enterprise U.2 interface rather than functioning as a drop-in consumer M.2 replacement. Choose storage around the actual workload and maintain a separate backup plan.
Platform checklist
- Confirm NVMe U.2 support along the entire host, controller, cable and backplane path.
- Allow for the drive’s dimensions, power requirements and mounting method; do not select by connector shape alone.
- Provide airflow that keeps the drive within its operating temperature range under sustained work.
- Check firmware and operating-system support with your server vendor before deployment.
Full technical specifications
| Manufacturer part number | MZQL27T6HBLA-00A07 |
|---|---|
| Product family | Samsung PM9A3 |
| Capacity | 7.68TB |
| Form factor | U.2 |
| Interface | PCI Express 4.0 NVMe |
| Component type | Enterprise SSD for server/workstation |
| NVMe specification | NVMe 1.4 |
| PCIe lane configuration | PCIe 4.0 x4, single port |
| Physical format | 2.5-inch U.2 |
| Sequential read / write | Up to 6,700 / 4,000MB/s; Samsung rev.1.4 table for 7,680GB |
| Random 4KB read / write | Up to 1,000,000 / 200,000 IOPS; specified test conditions |
| Endurance | 1 drive write per day; 14,016TB written rating |
| Power-loss protection | Enhanced power-loss data protection |
| Data integrity | End-to-end data protection |
| Encryption engine | Hardware AES-XTS 256-bit |
| Sector formats | 512-byte / 4,096-byte |
| Supply voltage | 12V ±10% |
| Active / idle power | Up to 13.5W active / 4W idle, datasheet conditions |
| Operating case temperature | 0°C to 70°C |
| Dimensions | 100.20 × 69.85 × 7.0mm; manufacturer tolerances apply |
| Weight | Up to 90g |
| Reliability rating | 2,000,000-hour MTBF; statistical rating, not a service-life guarantee |
Performance figures are reference maxima from Samsung’s PM9A3 U.2 datasheet rev.1.4 for the 7,680GB version. Actual results depend on test conditions, the host and workload; endurance and reliability ratings are not warranty promises.
Stock and delivery
Delivery timing depends on your destination and order details. Contact us before ordering if timing is critical.
Frequently asked questions
Is this the U.2 or M.2 version of PM9A3?
This exact product is the 7.68TB U.2 model MZQL27T6HBLA-00A07. PM9A3 is a product family with different capacities and formats; do not substitute specifications from another version.
Can I plug it into a SATA port or an M.2 slot?
Do not connect it as a SATA drive or assume a direct M.2 fit. Confirm a supported NVMe U.2 path, power, cable or backplane and any required adapter with your platform documentation.
Does the SSD include a U.2 cable or PCIe adapter?
One SSD is supplied. Cables, controllers, adapters and mounting accessories are not listed as included, so plan these separately for your specific installation.
Are the quoted speeds guaranteed in my server?
No. The figures are manufacturer reference results for the exact capacity under specified test conditions. Host bandwidth, queue depth, workload, drive state and cooling affect achieved performance.
Can I use it for local AI models and datasets?
Consider it as storage for a suitably configured system. It is not GPU VRAM, and storage capacity alone does not establish inference speed or which model a graphics card can run.
Is the endurance rating the same as a warranty?
No. DWPD, TBW and MTBF are technical ratings, not a promise of warranty coverage or individual drive life. Ask us to confirm the applicable warranty terms for your order.
Compare and plan your build
For a platform using M.2 instead, compare the Crucial T700 4TB M.2 SSD. It has a different capacity, form factor and intended installation; it is not a direct substitute for a U.2 backplane.
Storage drives · Computer components · Server memory options
Complete AI workstation alternative
Compare our assembled workstation offering instead of buying individual components. It is a separate system—not a promise that this part fits every configuration.
Explore the Mineshop AI Workstation →Manufacturer resources
Specifications: Samsung PM9A3 7.68TB U.2 NVMe Enterprise SSD
ModelMZQL27T6HBLA-00A07
InterfaceU.2 PCIe 4.0 NVMe
Capacity7.68 TB
InterfacePCI Express 4.0 NVMe
Form factorU.2
Read speed6,700 MB/s
Write speed4,000MB/s
Warranty
Factory warranty per manufacturer guidelines
Working product delivery guaranteed
Full after-sales support team
Terms of Sale
Payment proof required within 24 hours
Reservation confirmed upon receipt of payment
Industrial ASIC miners: all sales are final. Other products: 14-day return if unopened.
Shipping Information
Express: Europe 1–3 days, US & Asia 2–5 days
Economy: Europe 3–6 days
Dispatch within 24 hours
Ships via DHL, FedEx & UPS
